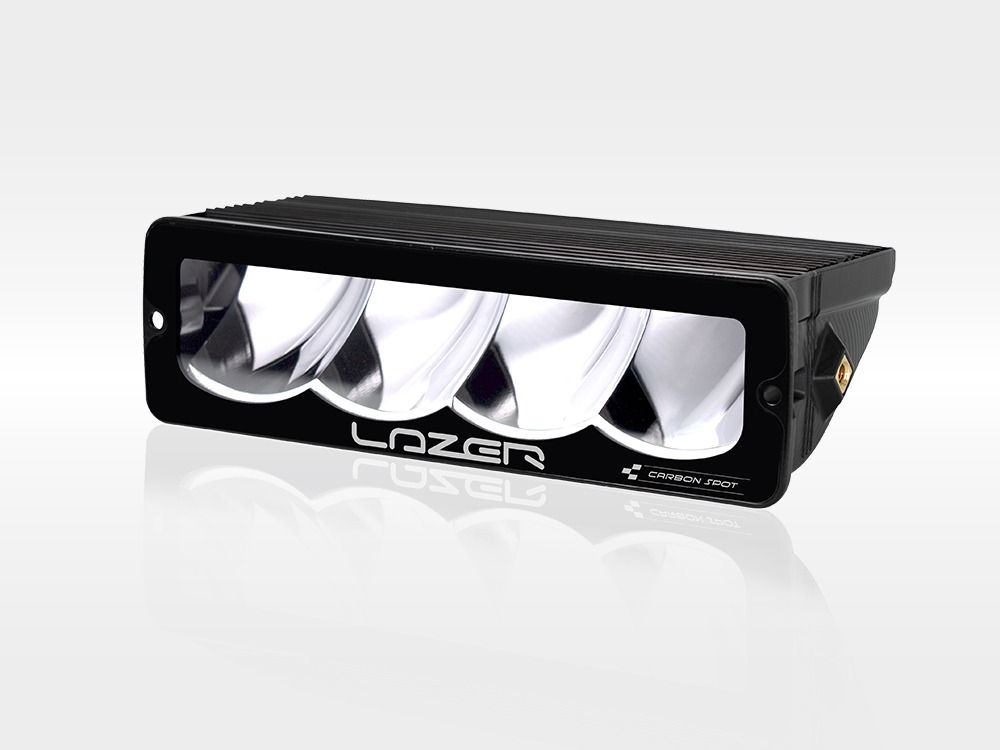

Carbon-4 Spot (Gen3)

Product Code
#00C4-SPOT-G3-SFIX

From €390.00

To €493.00

Carbon-4 Spot (Gen3) - Side Fix   + €390.00
Carbon-4 Spot (Gen3)

In stock

€390.00

Find a
Stockist

Now in its 3rd generation, the Carbon Series LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products delivers more light, less weight, greater functionality, and ease of fitment.

The Carbon-4 comes with the option for either a ‘Spot’ or ‘Drive’ beam pattern. The Spot version delivers 1 lux to 675m (per lamp) with a 32 degree left/right spread. By contrast the Drive version provides a wider left/right spread of light equivalent to 60 degrees with the compromise being that the 1 lux line reaches measures at 374m. As well as operating in ‘High Beam’ mode, the lights can also be easily switched to a ‘Dip / Low Beam’ mode during operation, a function shared with other lamps in the Carbon Series range. In the Dip / Low Beam mode, the beam pattern drops by around 4 degrees, giving the driver an option to reduce glare in case of road signs during a rally stage, or in case of dust or fog in case of difficult race/road conditions. Additional lighting modes are also possible for race teams who want maximum flexibility, by application of a PWM signal from the vehicle.

Incorporating 24 premium ‘bin’ LEDs per lamp – 12 LEDs dedicated to the ‘High Beam’ function, and 12 LEDs to the ‘Dip / Low Beam’, each Carbon-4 emits 6,240 raw lumens (regardless of the mode being used), albeit customers applying PWM to manage the light output from their Carbon-4 have the potential to increase the total light output to 120%. Advanced electronic design, coupled with vacuum-metallised optics which harness the maximum amount of light, deliver more light to the road or track ahead where it’s needed. A CAE-optimised heatsink dissipates heat away from the lamp to maximise light output for longer, while Dynamic Drive Modulation regulates the light output to prevent damage to the electronic components in more extreme environmental and thermal conditions.

To facilitate mounting of the lights to a variety of vehicles, the Carbon-4 lamps come with the option for front-fixing or side-mounting. Please check the product imagery for more details, alternatively basic CAD model data is available on request if more analysis of each mounting option is needed before purchase.




Please note: Our 'Front Fix' Carbon lamps are available by special order only. Please contact us for more information.





PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Carbon-4 Spot (Gen3)

Ultra-lightweight, high-strength composite material housing

Combination of high intensity ‘matrix’ LEDs

Available with Spot or Drive optics

Full-beam mode and secondary low/dipped beam mode

Low/dipped beam mode optimised for snow/fog/dust conditions

Front-fixing (special order only) and side mounting variants available

Carefully selected 5000K colour temperature maximises sharpness and definition

CAE-optimised heatsink requires minimal airflow to maintain 100% light output

Dynamic drive modulation preserves electronic components in adverse conditions

Low profile, edge-to-edge design for improved aerodynamic performance

Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)

Vehicle side connector, plus 300mm cable length supplied with each lamp.

Compatible wiring looms available

‘Unbreakable’ polycarbonate lens

IP68 watertight

5-year warranty

Designed & manufactured in Britain

Technical Specifications

Based on: 1x Carbon-4 Spot.

  Boost
Mode
Low Output
Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
IP Rating IP68 IP68
Weight 355g 355g
HIGH BEAM FUNCTION
Total Luminous Flux 6240 Lm 1384 Lm
Total Driver 'FOV' Flux † 3679 Lm 919 Lm
Colour Temperature 5000K 5000K
Number of High Output LEDs 24 LEDs 24 LEDs
Power Consumption 56 W 14 W
Peak Current Draw (11V) 3.9 A 1 A
Current Draw (14.4V) 5.25 A 1.3 A
DIMENSIONS
Width 206mm 206mm
Depth 85mm 85mm
Height 62mm 62mm
PHOTOMETRIC DATA
Horizontal Beam Angle 32° 32°
0.25 lx Line 1349m 675m
0.5 lx Line 954m 477m
1 lx Line 675m 337m
3 lx Line 389m 195m



† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 Carbon-4 Spot (Gen3)
  • x1 Installation Instructions
