Iveco Daily (2024+) Grille Kit

Product Code
#ID-02

From €400.00

To €965.00

Iveco Daily (2024+) Grille Kit

In stock

€400.00

Find a
Stockist

For an OE-quality auxiliary lightbar installation, the Lazer Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Lazer High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.

The Iveco Daily (2024+) Grille Integration Kit features your choice of Glide (Standard/Elite – with or without Position Light) or Linear-18 (Standard, Elite, Elite i-LBA or Elite+) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.

Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.

The Iveco Daily (2024+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Glide and Linear-18 LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface. For advice on how to check for a 12V high beam signal, please click here.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Iveco Daily (2024+) Grille Kit

Bespoke vehicle brackets for seamless integration

Custom fit for Iveco Daily (2024+)

Compatible with Linear-18 / Glide LED Lightbars

Kit also includes bespoke mounting brackets and wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications

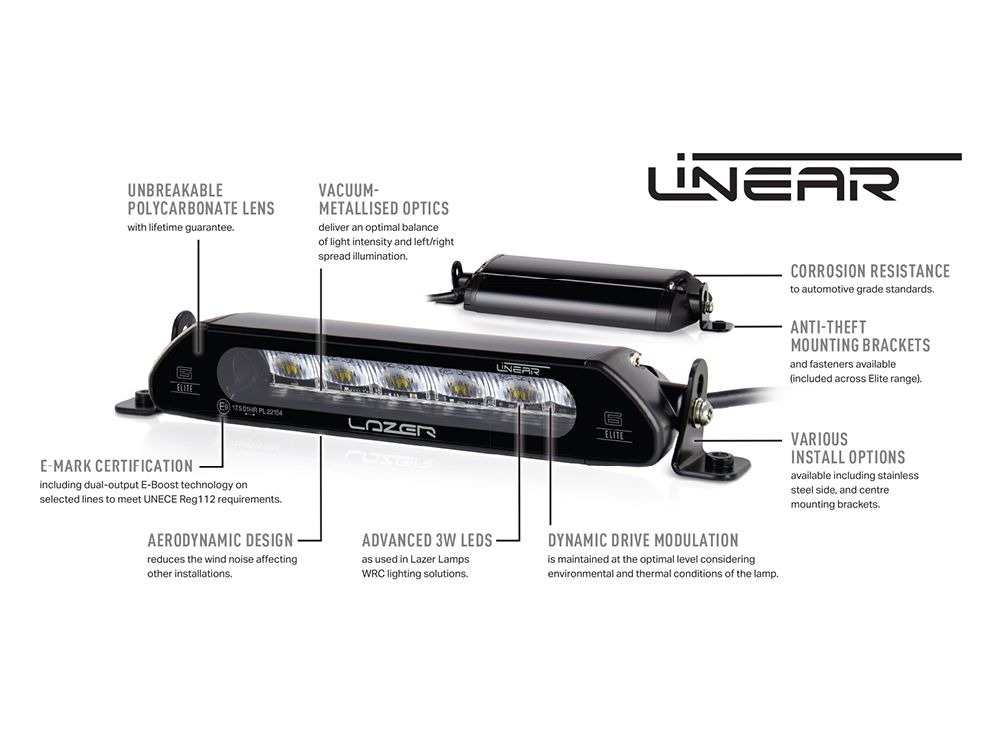

LINEAR-18

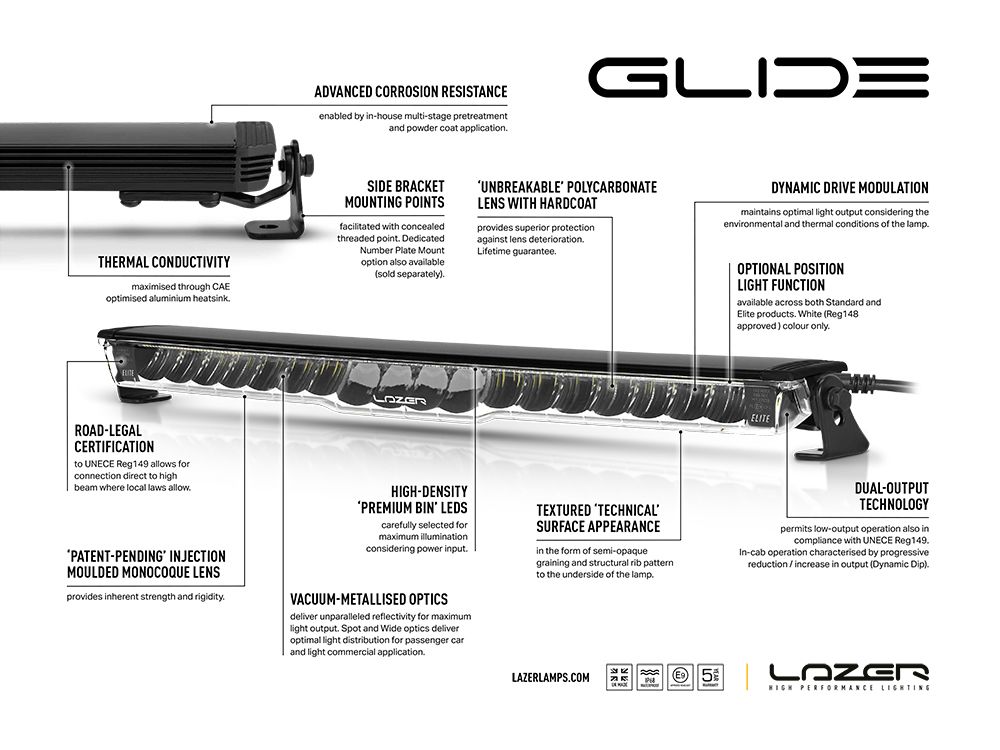

GLIDE
(BOOST)

LINEAR-18
ELITE

GLIDE
ELITE
(BOOST)

LINEAR-18
ELITE+
(BOOST)

LINEAR-18
ELITE I-LBA
(BOOST)


Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
Weight 1.1 kg 0.68 kg 1.1 kg 0.68 kg 1.1 kg 1.1 kg

HIGH BEAM FUNCTION
Total Luminous Flux 6,750 Lm 11,500 Lm 12,150 Lm 12,800 Lm 14,850 Lm 18,000 Lm
Total Driver 'FOV' Flux † 4,806 Lm 6,958 Lm 8,651 Lm 8,012 Lm 10,573 Lm 12,816 Lm
Colour Temperature 5000K 5000K 5000K 5000K 5000K 5000K
Power Consumption 63 Watts 120 Watts 126 Watts 130 Watts 134 Watts 135 Watts
Current Draw (14.4V) 4.4 Amps 8.3 Amps 8.8 Amps 9.2 Amps 9.9 Amps 15 Amps
Connector 2-Pin Superseal
(+25cm Cable)
2-Pin/3-Pin Superseal
(+25cm Cable)
2-Pin Superseal
(+25cm Cable)
2-Pin/3-Pin Superseal
(+25cm Cable)
3-Pin Aptiv
(+25cm Cable)
4-Pin Deutsch DT
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68 IP68 IP68 IP68 IP68
High Beam (E9 approval) ECE R112 (Ref: 30) ECE R149 (Ref: 12.5*) ECE R112 (Ref: 2x 25) ECE R149 (Ref: 12.5*) ECE R149 (Ref: 27.5*) ECE R112 (Ref: 17.5*)
EMC Certification ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle 56° / 13° 60° / 13° 64° / 15° 66° / 14° 84° / 20° 60° / 20°
0.25 lux 855m 1095m 975m 1249m 1,152m 1,043m
0.5 lux 605m 775m 690m 883m 815m 738m
1 lux 428m 548m 488m 624m 576m 522m
3 lux 247m 316m 282m 361m 333m 301m


* - The lamp is compliant with UNECE regulations only when operating in low-output mode.

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 1x LED Lightbar (Linear-18/Glide)
  • 1x One-Lamp Wiring Kit
  • Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
