Land Rover Defender (2020+) Grille Kit - Linear-18

1 Review

Product Code

GK-DEF18-01K/GK-DEF18-ELITE-01K/GK-DEF18-ILBA-01K

From €480.00

To €1,080.00

- +

Land Rover Defender (2020+) Grille Kit - Linear-18

In stock

Qty

€480.00

Find a
Stockist

For an OE quality, auxiliary LED driving light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

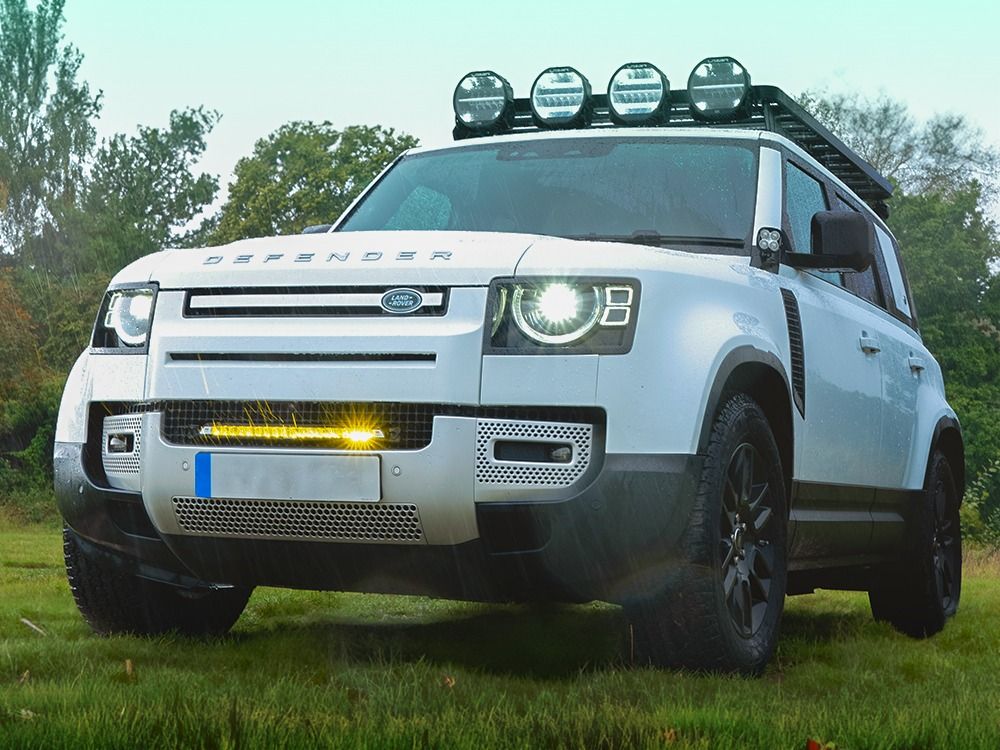

The Land Rover Defender kit, designed for MY20 vehicles onwards, includes a single Linear-18 (Standard, Elite, Elite+ and Elite with I-LBA) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard lower grille on the vehicle, with added strength and security provided by the supplied self-tapping, anti-theft screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

The Land Rover Defender (2020+) Grille Integration Kit is optimised for use with Linear-18 High Performance LED driving light. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Where the vehicle has automatic high beam assist, and/or LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

DELIVERY – EU CUSTOMERS

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Skip to the end of the images gallery

Land Rover Defender (2020+) Grille Kit - Linear-18

Skip to the beginning of the images gallery

Product Features

Bespoke vehicle integration kit for Lazer LED lightbar installation

Custom fit for Land Rover Defender (2020+)

Designed for use with Linear-18 High Performance LED lightbar

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications

	1x Linear-18	1x Linear-18 Elite	1x Linear-18 Elite+ (Boost Mode)	1x Linear-18 Elite i-LBA (Boost Mode)
Voltage Range (DC)	10-32V	10-32V	10-32V	10-32V
LED Life	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Weight	1090 gr	1090 gr	1090 gr	1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux	6,750 Lm	13,500 Lm	14850 Lm	18,000 Lm
Total Driver 'FOV' Flux †	4,806 Lm	9,612 Lm	10573 Lm	12,816 Lm
Colour Temperature	5000K	5000K	5000K	5000K
Number of High Output LEDs	18	36	36	48
Power Consumption	63 Watts	130 Watts	134 Watts	135 Watts
Current Draw (at 14.4V)	4.4 Amps	9 Amps	9.9 Amps	15 Amps
CERTIFICATION
High Beam	ECE R112	ECE R112	ECE R149	ECE R112
ECE Reference	30	2x25 (2x 10 - With E-Mark Cap)	N/A (27.5 - Low ouput mode)	N/A (17.5 - Low output mode)
PHOTOMETRIC DATA
Horizontal Beam Angle	56°	64°	84^o	60°
0.25 lx Line	855m	1023m	1152m	1043m
0.5 lx Line	605m	723m	815m	738m
1 lx Line	428m	511m	576m	522m
3 lx Line	247m	295m	333m	301m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's included

What's Included
1x Grille Mounting Kit (Includes cutting guides) 1x Linear-18 1x One-Lamp Wiring Kit Installation Instructions

Downloads

Downloads
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW) Linear-18 - Product Information Sheet (1.84 MB) Linear-18 Elite - Product Information Sheet (2.69 MB) Linear-18 Elite iLBA - Product Information Sheet (2.58 MB) Linear-18 Elite+ - Product Information Card (2.14 MB) Land Rover Defender 2020 - Grille Kit Instructions (Linear-18) (5.56 MB)
