Linear-42 Elite

Product Code
0L42-EL-LNR
€1,085.00
Find a
Stockist

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. All Linear Standard grade products are fully UNECE certified to Regulation 112 as Class B Driving lights for on-road use (with the exception of: Linear-48, Linear-36 Elite, Linear-42 Elite and Linear-48 Elite). Elite level products are also available, with these products boasting at least twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

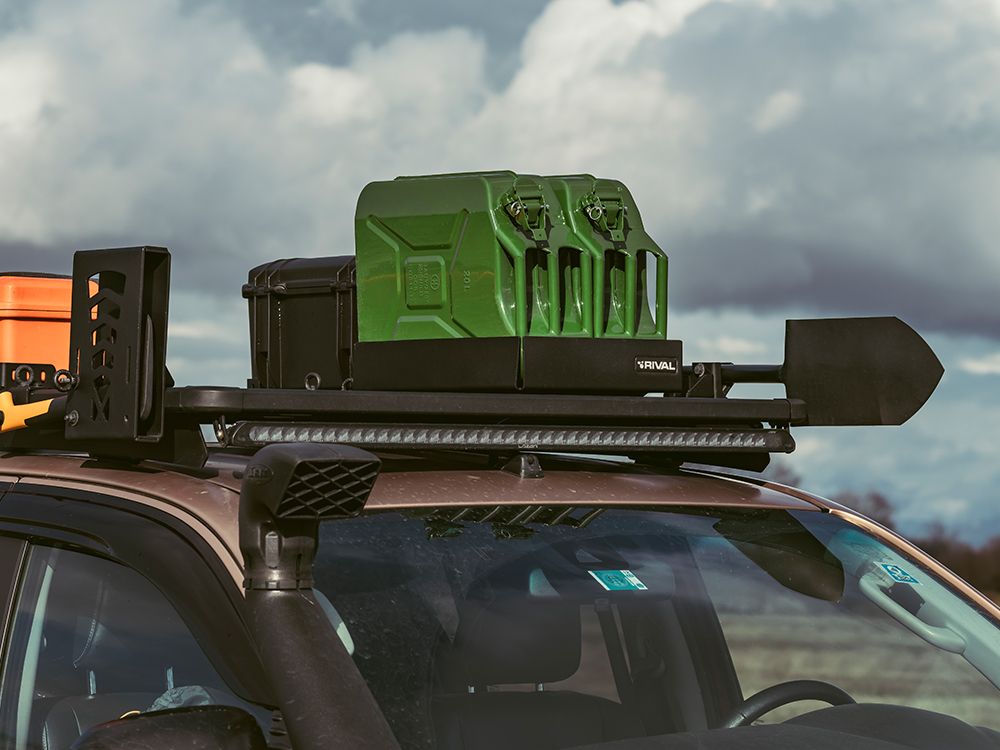

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Linear-42 Elite

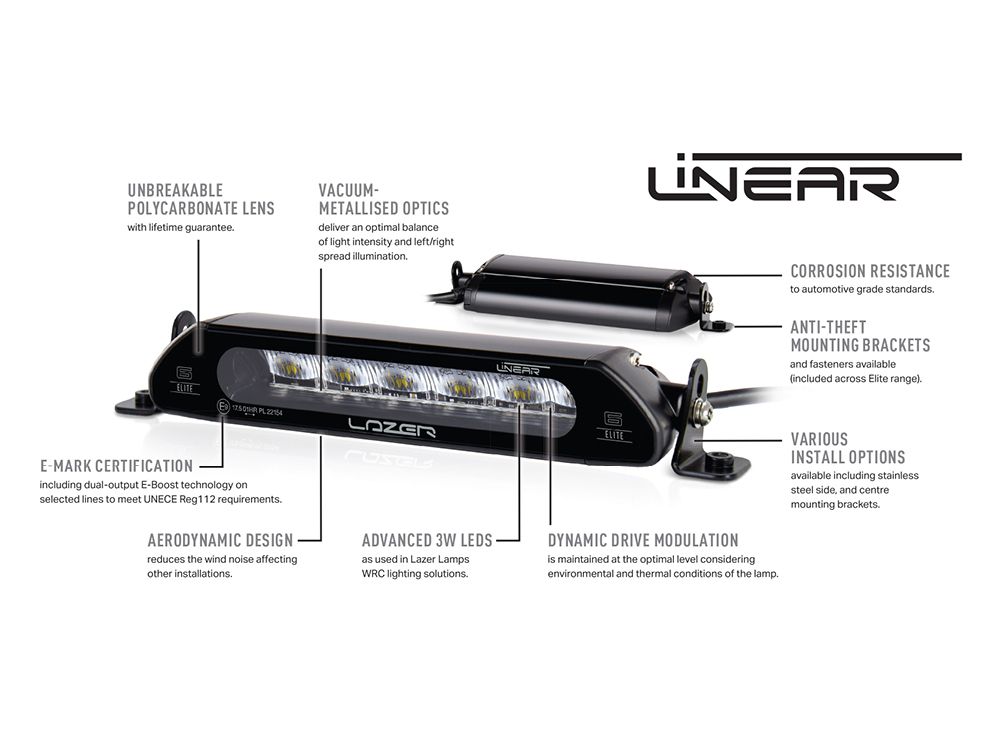

Combination of highly efficient 3W ‘premium bin’ LEDs

5000K LED colour temperature and 80CRI maximises sharpness and definition

Vacuum-metallised optics deliver wide spread of light

Reduced up/down spread of light suits even low mounting positions, or roof mounting

Sleek, low profile design eases installation

Aero design virtually eliminates wind noise on roof installations

Flexible mounting options – anti-theft side mounting brackets included

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP68 watertight

5 year warranty

Supplied with pre-wired male/female 2-pin Aptiv connectors

Designed and manufactured in UK

Technical Specifications

Based on: 1x Linear-42 Elite.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 3.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux 33300 Lm
Total Driver 'FOV' Flux † 23909 Lm
Colour Temperature 5000K
Number of High Output LEDs 84
Power Consumption 355 Watts
Current Draw (at 14.4V) 24.7 Amps
CERTIFICATION
High Beam N/A
ECE Reference N/A
DIMENSIONS
Width 1132 mm
Depth 62 mm
Height 40 mm

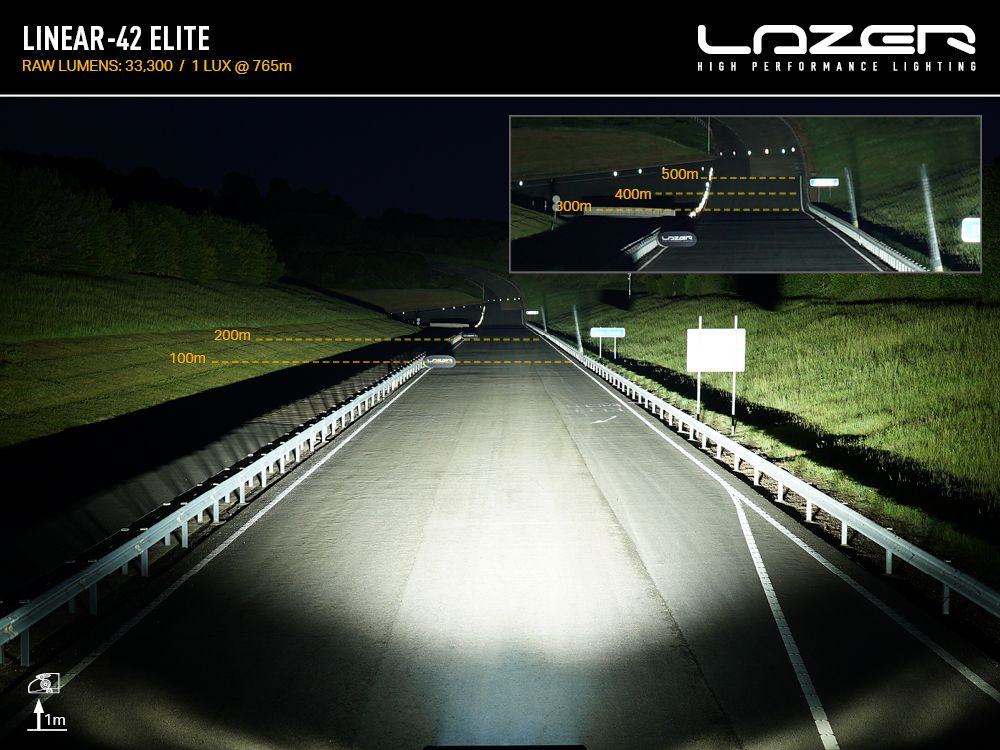

PHOTOMETRIC DATA
Horizontal Beam Angle 60°
0.25 lx Line 1530m
0.5 lx Line 1082m
1 lx Line 765m
3 lx Line 442m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 Linear-42 Elite LED Lamp
  • x1 Anti-Theft Side Mount (1127k)

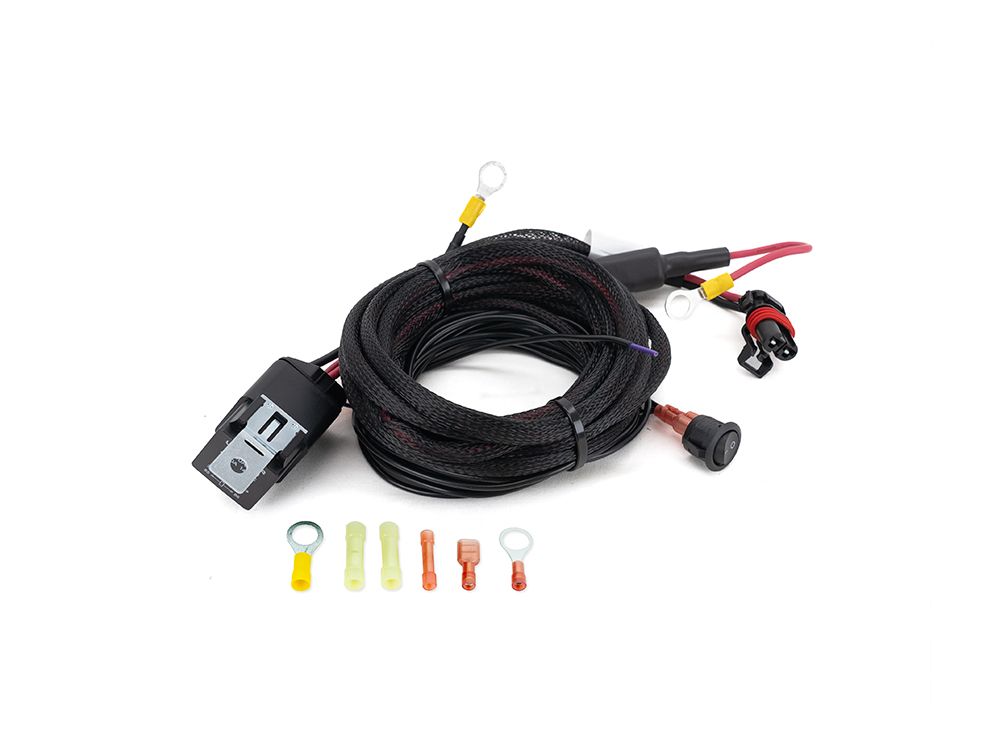

  • x1 Single-Lamp Wiring Harness (1L-40A-320)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
