Mercedes Vito (2014-2019) Grille Kit

Product Code
GK-VITO-01K/GK-VITO-ELITE-01K

From €110.00

To €1,005.00

Mercedes Vito (2014-2019) Grille Kit

In stock

€110.00

Find a
Stockist

For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

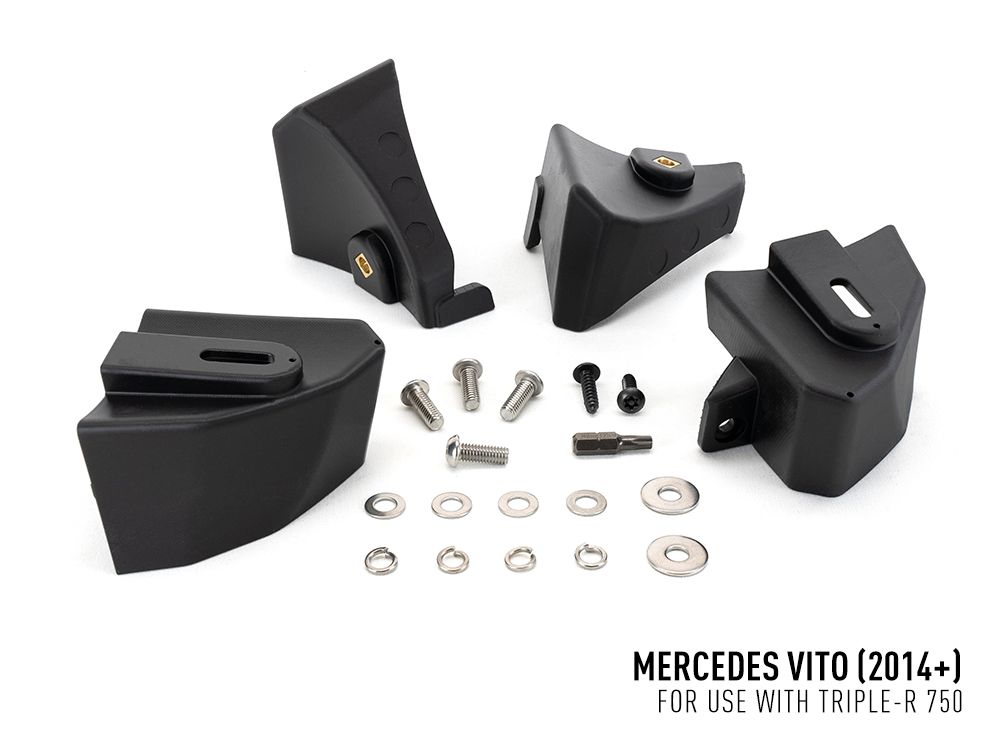

The Mercedes Vito kit, designed for 2014-2019 vehicles, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

2 variants of Triple-R 750 lights are available: Triple-R 750 Standard, with the added option of white or amber position/side light function, or 750 Elite, which boast increased light output and a beam pattern carefully engineered to provide for more distance illumination, alongside an improved left/right spread of light at the sides of the road.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

The Mercedes Vito (2014-2019) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.



PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Mercedes Vito (2014-2019) Grille Kit

Bespoke vehicle integration kit for Lazer LED light installation

Custom fit for Mercedes Vito (2014-2019)

Designed for use with Triple-R 750 High Performance LED lights

Added option for white or amber position/side light function (Standard model only)

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications
  2x
Triple-R
750 Wide
2x
Triple-R 750

2x
Triple-R
750 Elite
(E-Boost Mode)

Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs
Weight 2 kg 2 kg 2 kg
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm 9240 Lm

10136 Lm

Total Driver 'FOV' Flux † 5266 Lm 5572 Lm 6680 Lm
Colour Temperature 5000K 5000K 5000K
Number of High Output LEDs 2 x 4 2 x 4 2 x 4
Power Consumption 88 Watts 88 Watts 104 Watts
Current Draw (at 14.4V) 6.2 Amps 6.2 Amps 7.2 Amps
CERTIFICATION
High Beam ECE R149 ECE R112 ECE R112
ECE Reference 20 x2 35 x2

N/A
(12.5 x2 - E-Mark Mode)

Position Light (White only) N/A ECE R7 N/A
PHOTOMETRIC DATA
Horizontal Beam Angle 40o 19° 42°
0.25 lx Line 829m 1225m 1358m
0.5 lx Line 587m 866m 960m
1 lx Line 415m 612m 679m
3 lx Line 239m 354m 392m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 2x Triple-R 750 LED Lamps

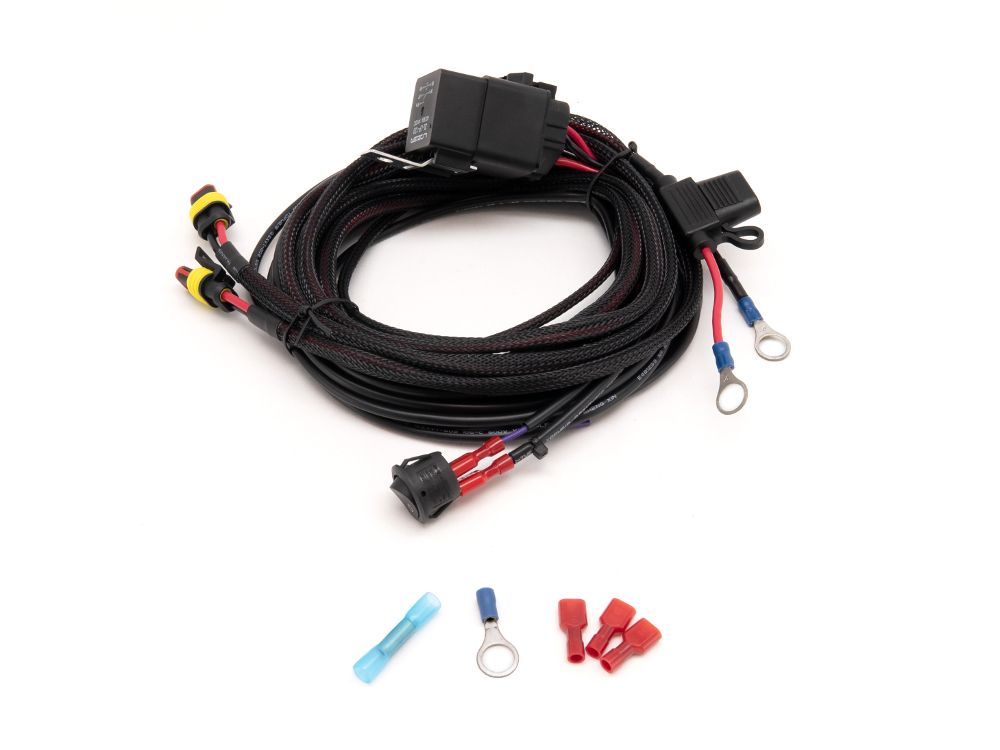

  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
