Mercedes X-Class Roof Mount Kit (with Roof Rails)

Product Code
3001-C-37-K-XCLASS

From €52.00

To €1,327.00

Mercedes X-Class Roof Mount Kit (with Roof Rails)

In stock

€52.00

Find a
Stockist

Optimised for the Mercedes X-Class, the Lazer Lamps Roof Mounting Kit comprises stainless steel brackets that fix to the vehicle’s roof rails for easy fitment of the Linear-36 (available in Standard or Elite) high performance LED spotlight.

Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the mounting brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, and cylindrical spacers to aid positioning of the lamp. Cable grommets are supplied to ensure a tidy, and sealed cable entry point whether into the roof rail, and/or through the roof into the vehicle’s headlining.

With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-36 is an ECE-approved (Standard model only) auxiliary LED spotlight that integrates effortlessly for an understated install, that boasts class-leading lighting performance. The Linear-36 delivers good distance illumination, and left/right spread, that leaves little to the imagination, with the elite products boasting double the light output to the standard model. The low-profile design also benefits from exceptional low wind noise, which can affect many roof light installations when driving at higher speeds.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.


LIGHTS AND WIRING SOLD SEPARATELY.
(note - One-Lamp Wiring Kit included with lamps: Linear-36 Elite)

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Mercedes X-Class Roof Mount Kit (with Roof Rails)

Complete one-stop solution for roof-mounting on Mercedes X-Class with Roof Rails

Optimised for Linear-36 (Standard or Elite) high performance LED spotlight

Mounting brackets made from 3mm A2 stainless steel

UV-stable, satin black powder coat

Includes assortment of A2 stainless steel, anti-theft fixings with countersunk head

Spacers facilitate positioning of different length LED light bars

Vehicle wiring kits available (with Splice or with Switch)

5yr Warranty

Manufactured in the UK

Technical Specifications
  Linear-36 Elite Linear-36
Voltage Range 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.7 kg 2.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux 29700 Lm 13500 Lm
Total Driver 'FOV' Flux † 21325 Lm 9612 Lm
Colour Temperature 5000K 5000k
Number of High Output LEDs 72 36
Power Consumption 308 Watts 126 Watts
Current Draw (at 14.4V) 21.4 Amps 8.8 Amps
CERTIFICATION
High Beam N/A ECE R112
ECE Reference N/A 50
DIMENSIONS
Width 982 mm 982 mm
Depth 62 mm 62 mm
Height 40 mm 40 mm

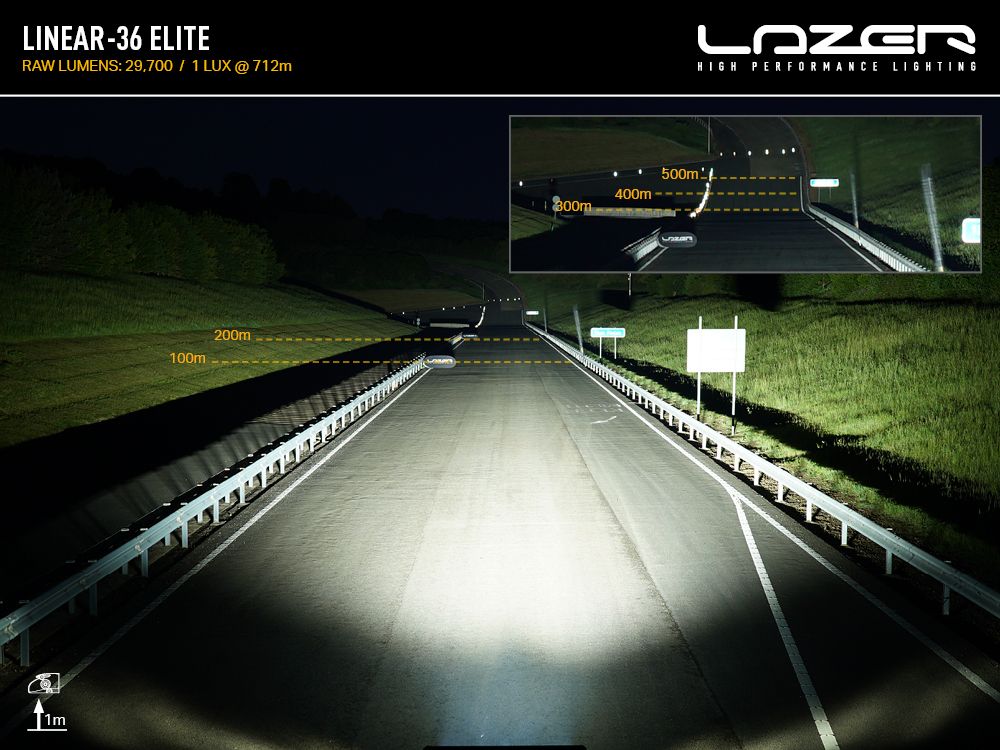

PHOTOMETRIC DATA
Horizontal Beam Angle 60° 50°
0.25 lx Line 1423m 940m
0.5 lx Line 1006m 665m
1 lx Line 712m 470m
3 lx Line 411m 271m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

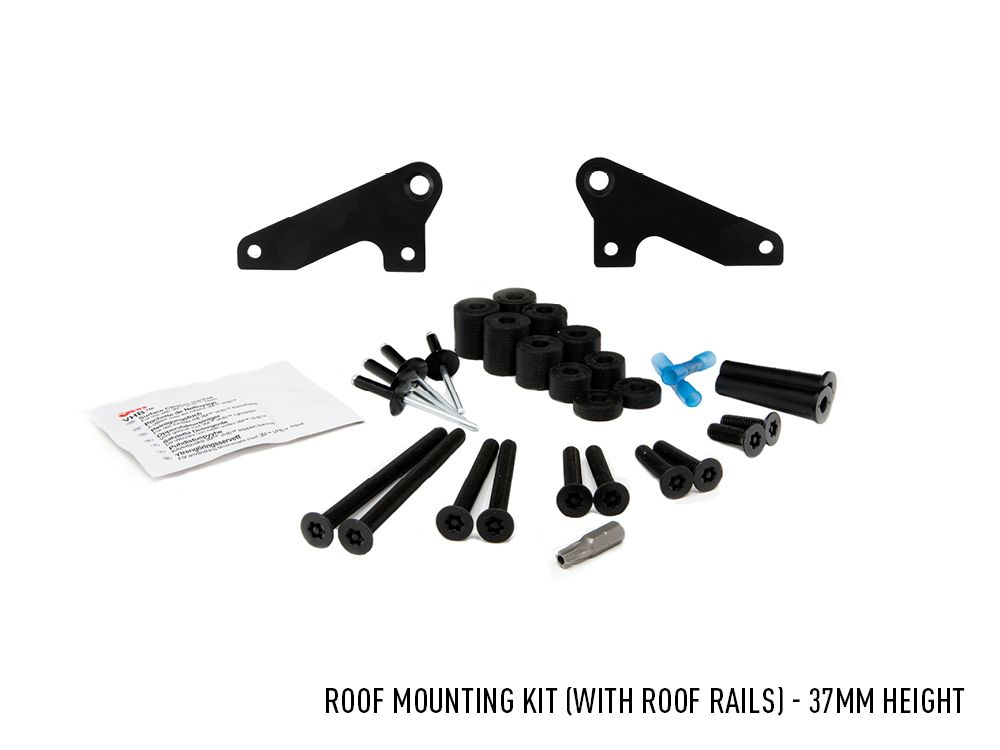

What's Included
  • 2x Stainless Steel Mounting Bracket (LH/RH)
  • Anti-theft Fastener Set (various sizes)
  • Spacer Set (various sizes)
  • Rivets (Black)
  • Cable Grommets
  • VHB Cleaning Sachet
  • Heat-shrink Butt Splices

Fitting instructions available in the downloads section below.
