Nissan Navara (2014-2021) Kit

Product Code
#VIFK-NAVARA-01K

From €17.40

To €1,072.40

Nissan Navara (2014-2021) Kit

In stock

€17.40

Find a
Stockist

Effortlessly positioned into the lower front grille, the Lazer Lamps vehicle integration kit for the Nissan Navara (2014-2021), allows for flush mounting of our class-leading Linear-18 (Standard or Elite), for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.

ECE compliance allows for connecting into the vehicle's electrical system so that the light activates with the vehicle's standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Navara lighting upgrade kit delivers incredible levels of illumination for when the sun goes down. Where the vehicle utilises LED driving lights as standard, a CanM8 high beam interface is available as an optional part to complete a unified electrical install.

The mounting of the light is quick and simple, requiring only a slight modification to the original lower grille. The resulting setup is secure and robust, with anti-theft fasteners included when utilising the Linear-18 Elite light, and as an optional extra when using the equivalent Standard light. Like all lighting products from Lazer Lamps, the Linear-18's are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.



LIGHTS AND WIRING SOLD SEPARATELY.
(Please note - One-Lamp Harness Kit included with the following lamps: Linear-18 Elite with i-LBA and Linear-18 Elite+)

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Nissan Navara (2014-2021) Kit

Vehicle integration kit for Lazer LED Spotlight installation

Optimised for Nissan Navara Lower Grille (MY 2014-2021)

Utilises Linear-18 High Performance LED Spotlight

Available in either Standard or Elite grade

Full fitting kit requires; Linear-18 Std or Elite, One-Lamp Wiring Kit, CanM8 High Beam Interface (where required) and Fixing Kit

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications

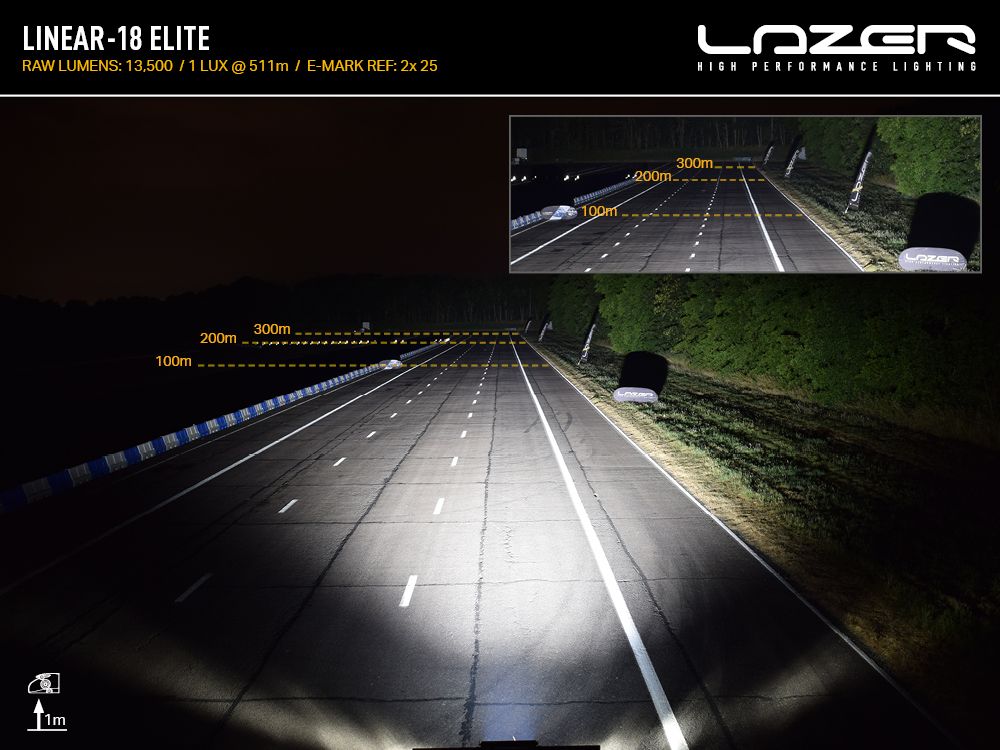

  1x Linear-18 Elite (Double E-Mark) 1x Linear-18 Elite with

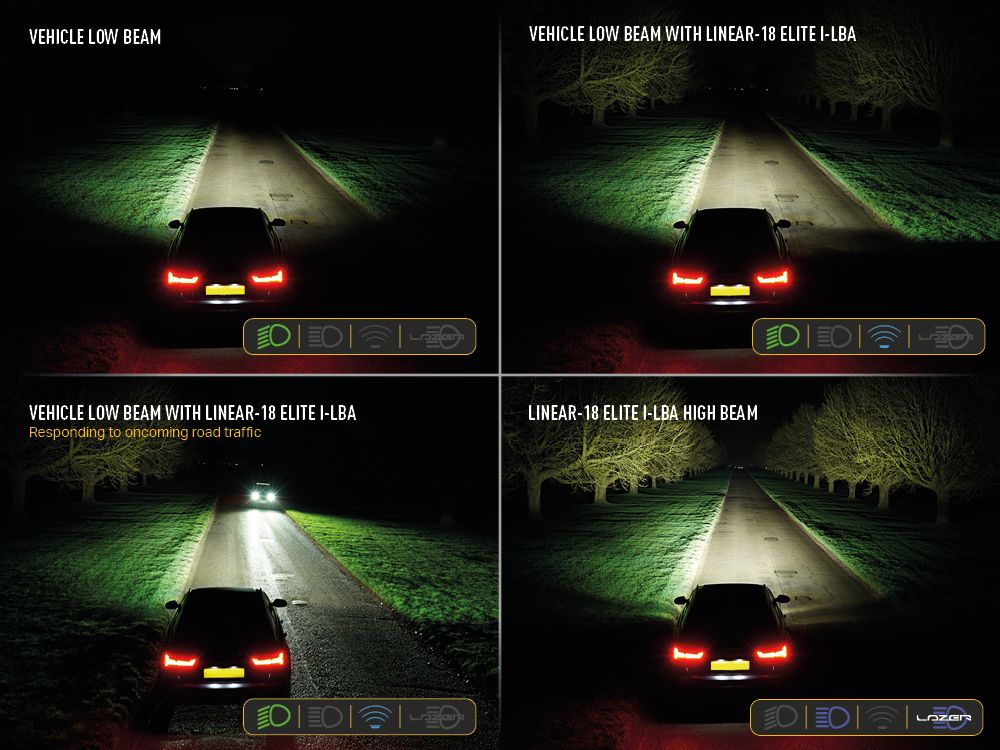

i-LBA
(E-Boost)

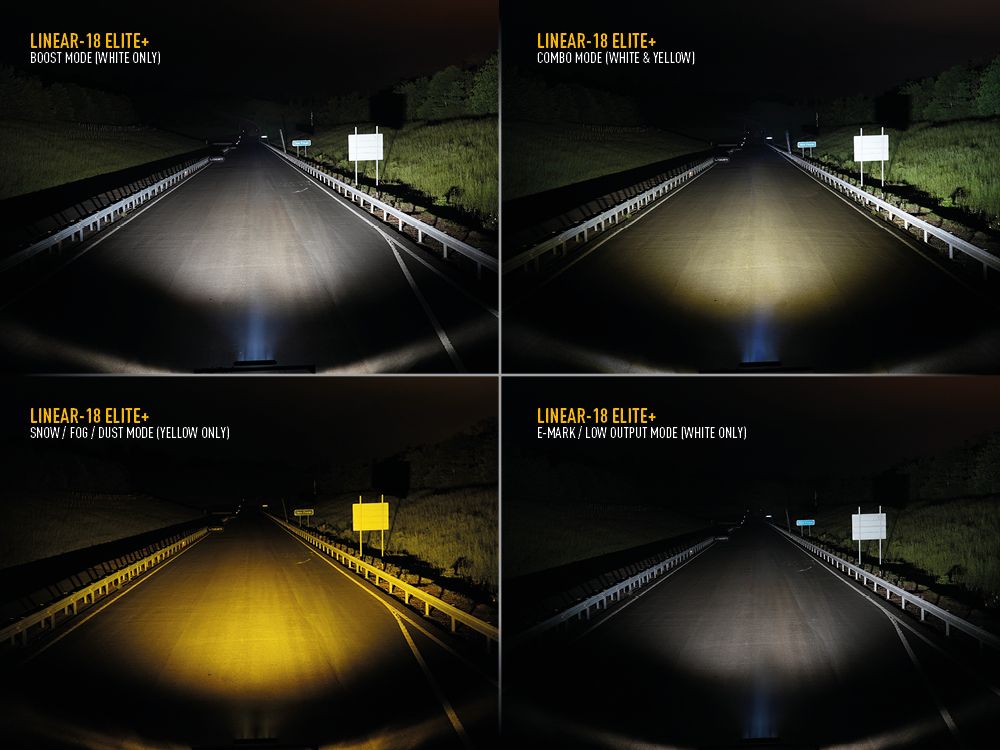

1x Linear-18 Elite+
(E-Boost/
E-Mark)

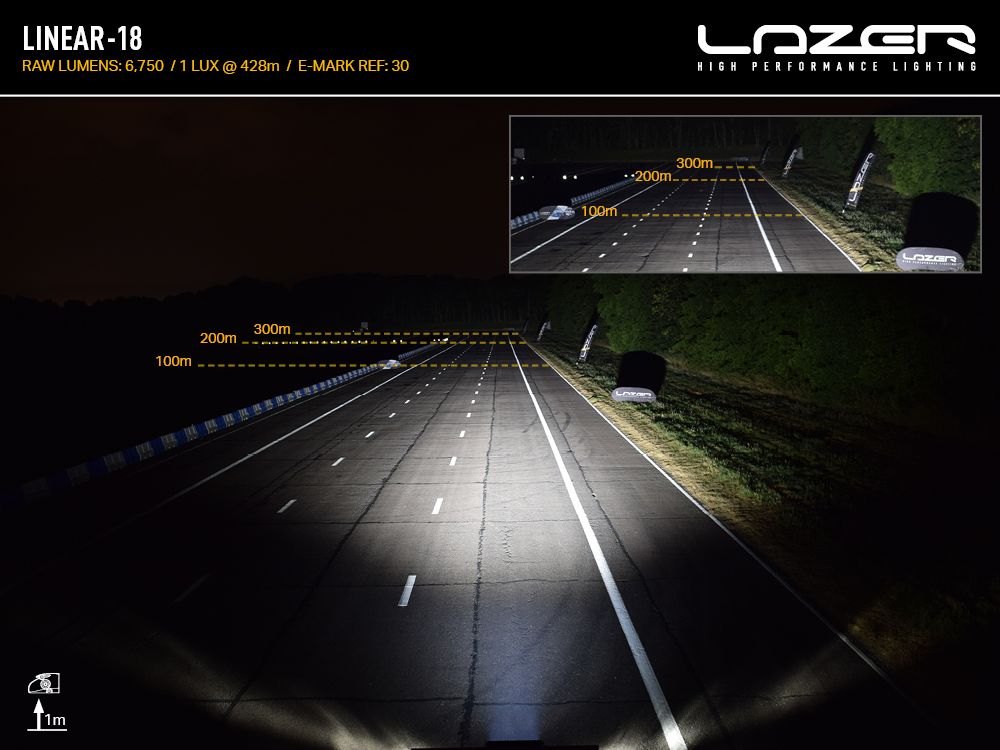

1x Linear-18
Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours 50,000 hours
Weight 1090 gr 1090 gr 1090 gr 1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux 13,500 Lm 18,000 Lm 14850 / 4455 Lm 6,750 Lm
Total Driver 'FOV' Flux † 9,612 Lm 12,816 Lm 10573 / 3172 Lm 4,806 Lm
Colour Temperature 5000K 5000K 5000K 5000K
Number of High Output LEDs 36 48 36 18
Power Consumption 130 Watts 135 Watts 134 W / 39 W 63 Watts
Current Draw (at 14.4V) 9 Amps 15 Amps 9.9 A / 2.7 A 4.4 Amps
CERTIFICATION
High Beam ECE R112 ECE R112 ECE R149 ECE R112
ECE Reference 2x25
(2x 10 - With E-Mark Cap)
N/A
(17.5 - E-Mark Mode)
TBC 30
PHOTOMETRIC DATA
Horizontal Beam Angle 64° 60° 84o 56°
0.25 lx Line 1023m  1043m 1152m / 694m 855m
0.5 lx Line 723m  738m 815m / 491m 605m
1 lx Line 511m 522m 576m / 347m 428m
3 lx Line 295m 301m 333m / 200m 247m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 2x Mounting Brackets
  • Fixtures

Fitting instructions available in the downloads section below.

Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
