Nissan Navara (2014-2019) Roof Mounting Kit

Product Code
3001-C-37-K-NAVARA

From €52.00

To €1,327.00

Nissan Navara (2014-2019) Roof Mounting Kit

In stock

€52.00

Find a
Stockist

Optimised for the Nissan Navara 2014-2019 (with roof rails), the Lazer Lamps Roof Mounting Kit utilises the hugely impressive Linear-36 high performance LED spotlight (Standard or Elite), securely fixed to the vehicle’s roof rails using stainless steel brackets, featuring anti-theft fasteners, for a robust secure installation. Fully ECE certified (check local regulations regarding mounting a single lamp), the Linear-36 (standard model only) can be installed to work side-by-side with the Navara’s standard high beam lights for a significant lighting upgrade that leaves little to the imagination.

With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-36 integrates effortlessly with modern vehicles, balancing understated presence (and low wind noise) with class-leading lighting performance borne out of development and testing at the highest levels of professional motorsport, optimised for everyday road use. The beam pattern has been carefully engineered to deliver distance illumination, but with a spread of light that maximises the lumens delivered from the highly efficient LEDs, with the Elite products boasting over double the light output to the standard model. A 5000K colour temperature provides for maximum definition and sharpness of the road ahead while being comfortable to drive with even over prolonged periods.

Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the mounting brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, and cylindrical spacers to aid positioning of the lamp. The Linear-36 itself is designed and manufactured in the UK to exacting standards, complete with 5-year warranty, and lifetime lens guarantee.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.



LIGHTS AND WIRING SOLD SEPARATELY.
(note - One-Lamp Wiring Kit included with lamps: Linear-36 Elite)



PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Nissan Navara (2014-2019) Roof Mounting Kit

Complete one-stop solution for roof-mounting on Nissan Navara (2014-2019) with Roof Rails

Utilises Linear-36 high performance LED spotlight

Fully ECE approved road legal spotlight (check local regulations regarding mounting requirements)

Mounting brackets made from 3mm A2 stainless steel

UV-stable, satin black powder coat

Includes countersunk, A2 stainless steel, anti-theft fixings

Single lamp wiring looms available with splice (direct to high beam) or switch

CANbus High Beam Interface available where required

5 year warranty

Manufactured in the UK

Technical Specifications
  Linear-36 Elite Linear-36
Voltage Range 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2.7 kg 2.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux 29700 Lm 13500 Lm
Total Driver 'FOV' Flux † 21325 Lm 9612 Lm
Colour Temperature 5000K 5000K
Number of High Output LEDs 72 36
Power Consumption 308 Watts 126 Watts
Current Draw (at 14.4V) 21.4 Amps 8.8 Amps
CERTIFICATION
High Beam N/A ECE R112
ECE Reference N/A 50
DIMENSIONS
Width 982 mm 982 mm
Depth 62 mm 62 mm
Height 40 mm 40 mm

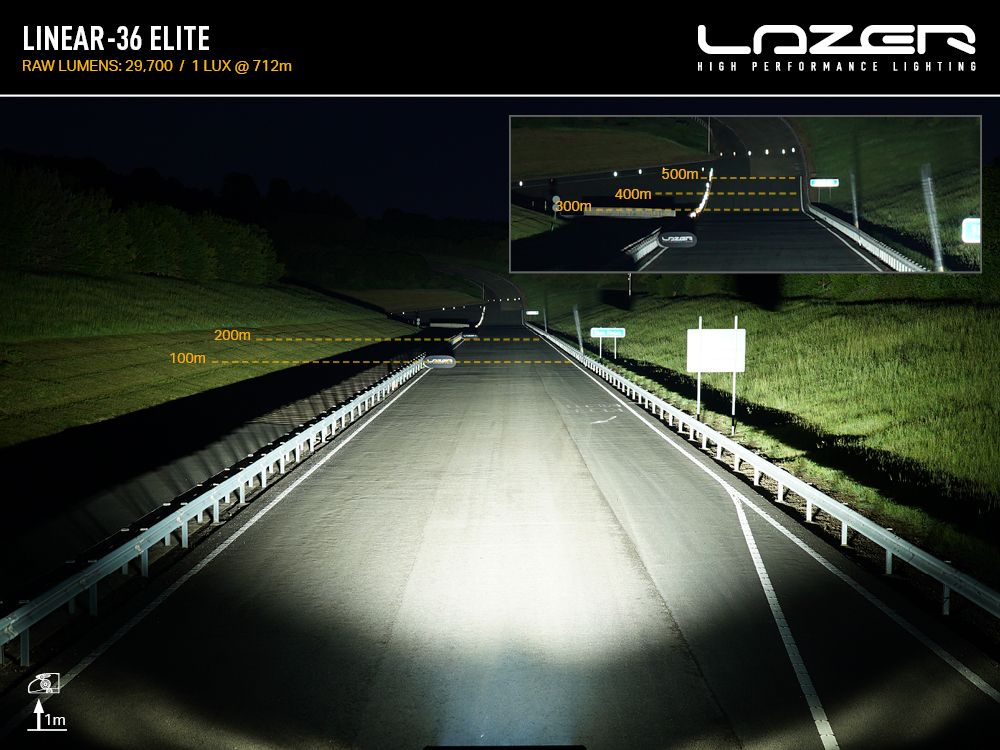

PHOTOMETRIC DATA
Horizontal Beam Angle 60° 50o
0.25 lx Line 1423m 940m
0.5 lx Line 1006m 665m
1 lx Line 712m 470m
3 lx Line 411m 271m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

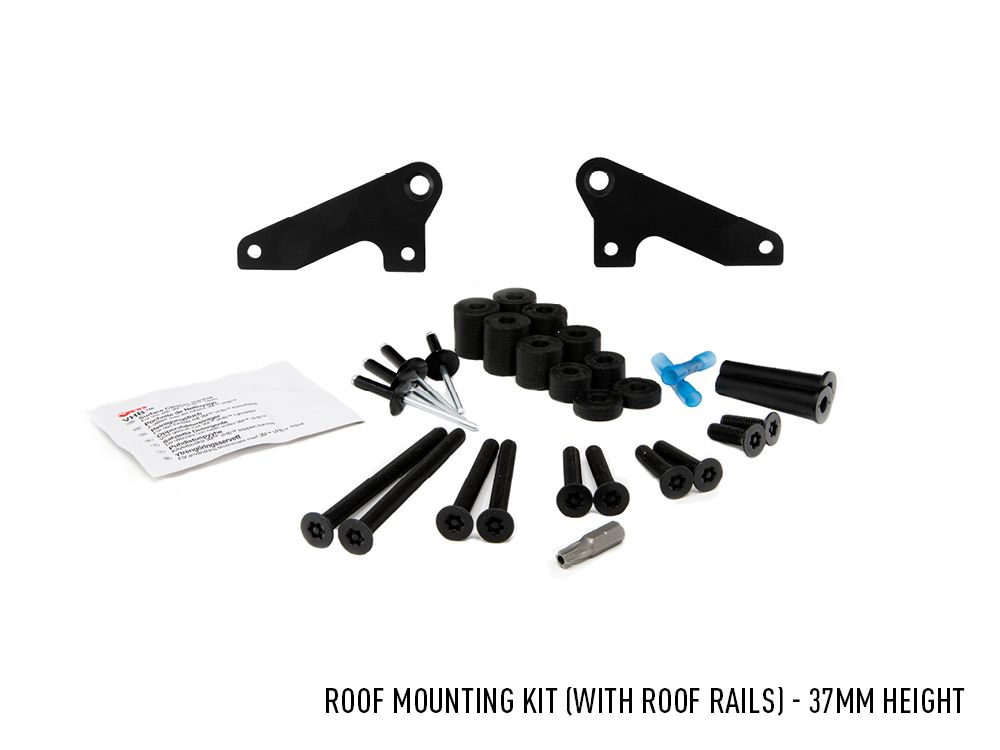

What's Included
  • 2x Stainless Steel Mounting Bracket (LH/RH)
  • Anti-theft Fastener Set (various sizes)
  • Spacer Set (various sizes)
  • Rivets (Black)
  • Cable Grommets
  • VHB Cleaning Sachet
  • Heat-shrink Butt Splices

Fitting instructions available in the downloads section below.

Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
