RAM 1500 DS Series - Classic (2013+) Grille Kit

Product Code
GK-R1500-01K/GK-R1500-ELITE-01K

From €570.00

To €735.00

RAM 1500 DS Series - Classic (2013+) Grille Kit

In stock

€570.00

Find a
Stockist

For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting road-legal lighting setup remains fully robust and secure, while delivering night-time visibility that leaves little to the imagination.

The RAM 1500 DS Series with Classic Trim kit, designed and engineered for model year 2013+ vehicles, features a pair of Triple-R 750 (Standard or Elite) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

The RAM 1500 DS Series - Classic (2013+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.



PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

RAM 1500 DS Series - Classic (2013+) Grille Kit

Bespoke vehicle integration kit for Lazer LED Driving Light installation

Custom fit for RAM 1500 DS Series - Classic (2013+)

For use with Triple-R 750 Performance LED driving lights

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications


2x
TRIPLE-750 WIDE

2x
TRIPLE-R 750

2x
TRIPLE-R 750 ELITE
(BOOST MODE)


Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 2.6 kg 2.6 kg 2.6 kg

HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm 9240 Lm

10136 Lm

Total Driver 'FOV' Flux † 5266 Lm 5572 Lm 6680 Lm
Colour Temperature 5000K 5000K 5000K
Power Consumption 88 Watts 88 Watts 104 Watts
Current Draw (14.4V) 6.2 Amps 6.2 Amps 7.2 Amps
Connector 2-Pin Superseal
(+25cm Cable)
3-Pin Superseal
(+25cm Cable)
2-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68 IP68
High Beam
(E9 approval)
ECE R149 - Ref: 2x 20 ECE R112 - Ref: 2x 35 ECE R112 - Ref: 2x 12.5
(Low Output Mode)
Position Light (White) N/A ECE R148 N/A
EMC Certification ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2

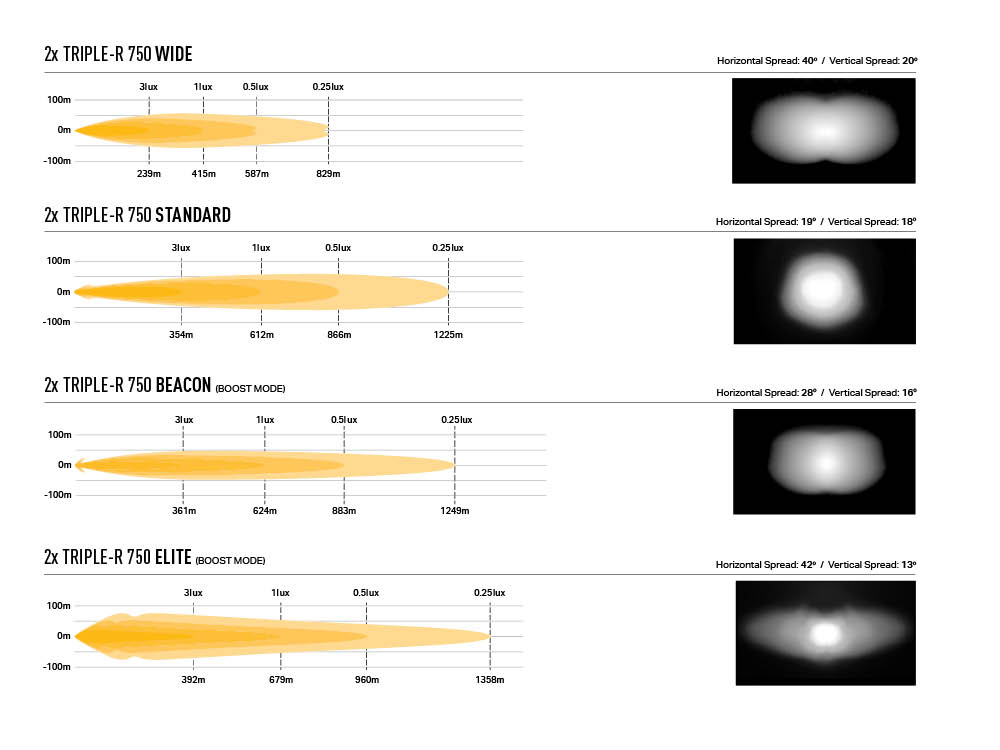

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 40° / 20° 19° / 18° 42° / 13°
0.25 Lux 829m 1225m 1358m
0.5 Lux 587m 866m 960m
1 Lux 415m 612m 679m
3 Lux 239m 354m 392m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 2x Triple-R 750 LED Lamps

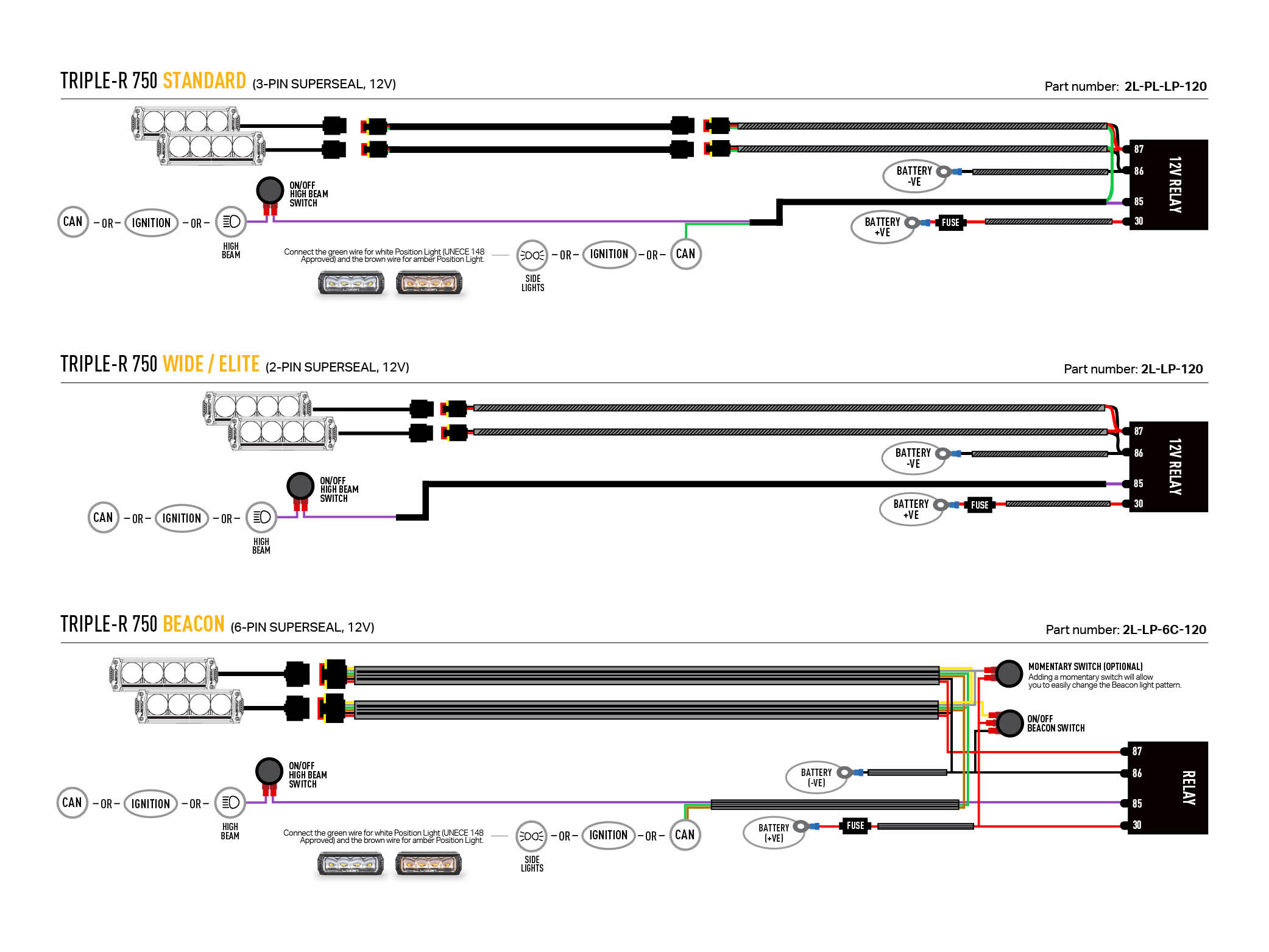

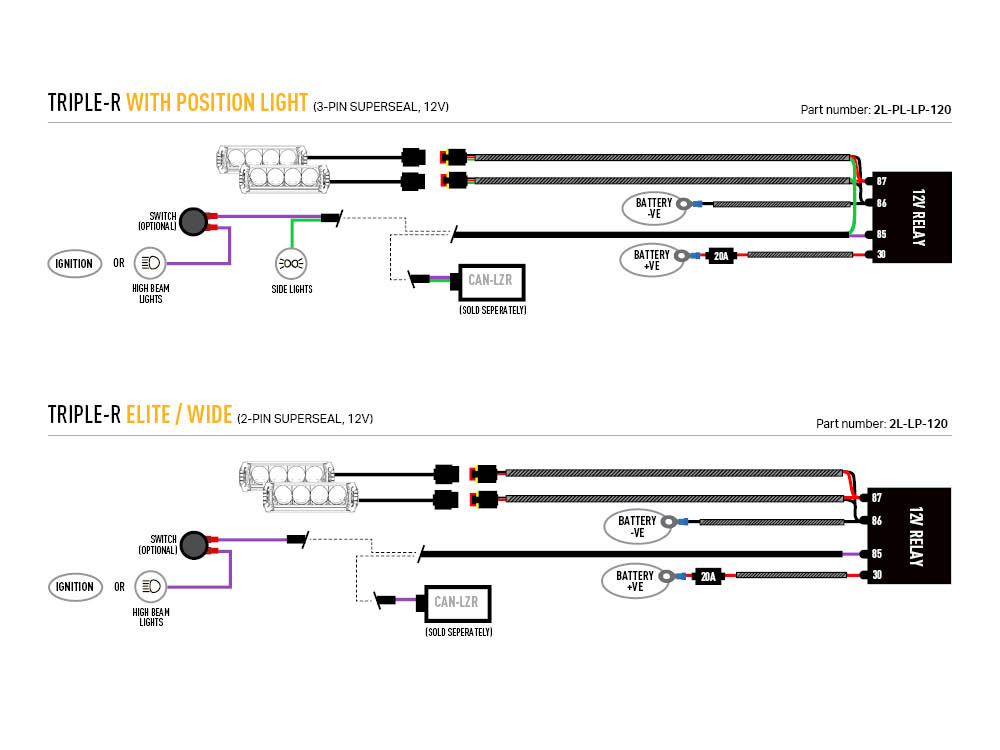

  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos

Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel — click here to explore!
