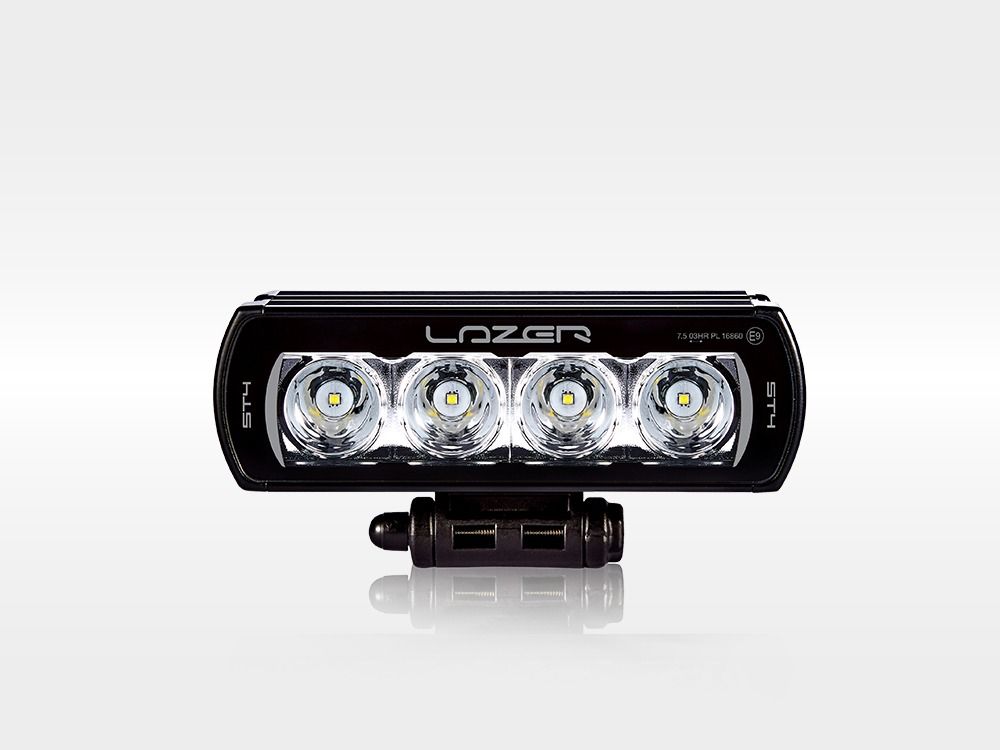

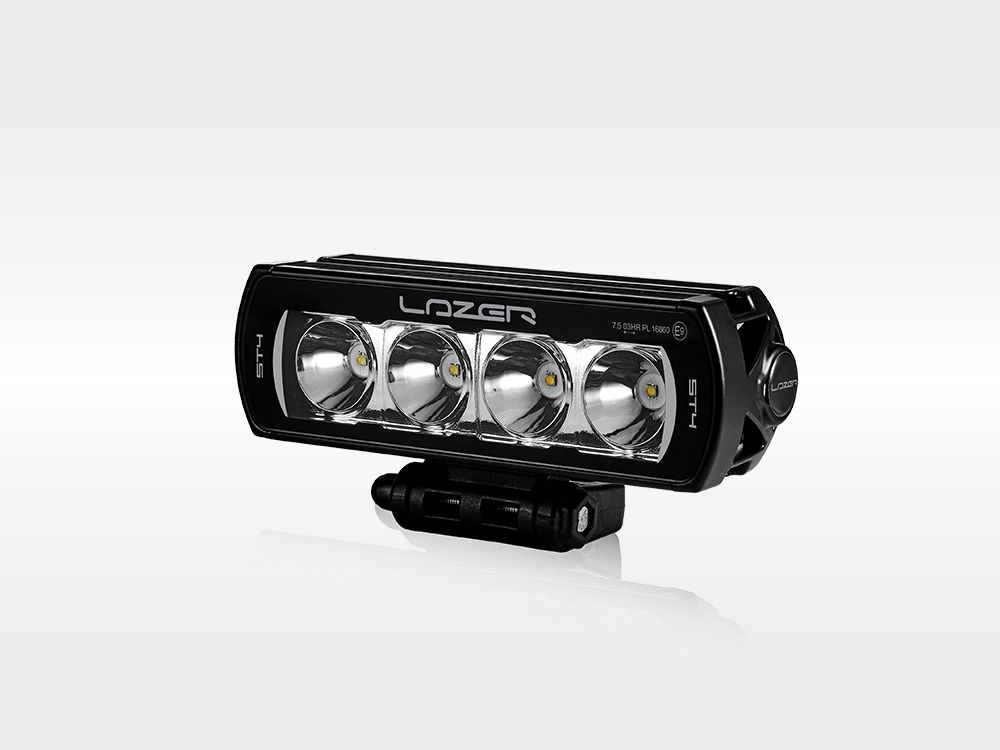

ST4 Evolution

Rating:
100%
Product Code
#0004-EVO-B

From €230.00

To €540.00

ST4 Evolution   + €230.00
ST4 Evolution

In stock

€230.00

Find a
Stockist

The ST / T Evolution range of products feature highly efficient, premium ‘bin’ 11W LEDs in combination with vacuum-metallised conical optics to deliver a powerful beam pattern with wide spread. This makes the products especially well-suited to rural and off-road applications. Incorporating the same electrical and product design across both ST and T lights, the former indicates lights that are UNECE certified to Regulation 112 as high beam driving lights, while the latter indicating the larger light bars not certified and intended for off-road use only operated via an independent switch.

Available in sizes ranging from the 124mm (5”) ST2 to the 1164mm (46”) T28, these are LED light bars benefitting from huge versatility, having been adopted across a wide range of different applications and vehicle types, since the products were first launched in 2010. Since then, the range has been re-engineered and re-designed incorporating the latest and best technology alongside a more contemporary, seamless, low profile design making them easier to install, more resistant to dirt, snow and ice accumulations and with styling guaranteed to complement and enhance the appearance of modern vehicles.

Superior lighting performance is delivered by the high power 11W LEDs, alongside advanced electronic design, combined with sophisticated thermal management systems and ultra-reflective vacuum-metallised reflectors to harness the maximum amount of light where you need it: on the road or trail ahead. Like all Lazer products, the LEDs are carefully selected at 5000k colour temperature to maximise sharpness and definition of your surroundings.

Performance aside, the ST / T Evolution LED light bars are built to last backed by a comprehensive 5 year warranty. Designed, engineered and manufactured in-house, in the UK, there’s no compromise when it comes to build quality, ensuring the lights perform as well as they look and function for years to come.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

ST4 Evolution

High density, premium ‘bin’ 11W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Ultra-reflective, vacuum-metallised conical optics deliver excellent spread

Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

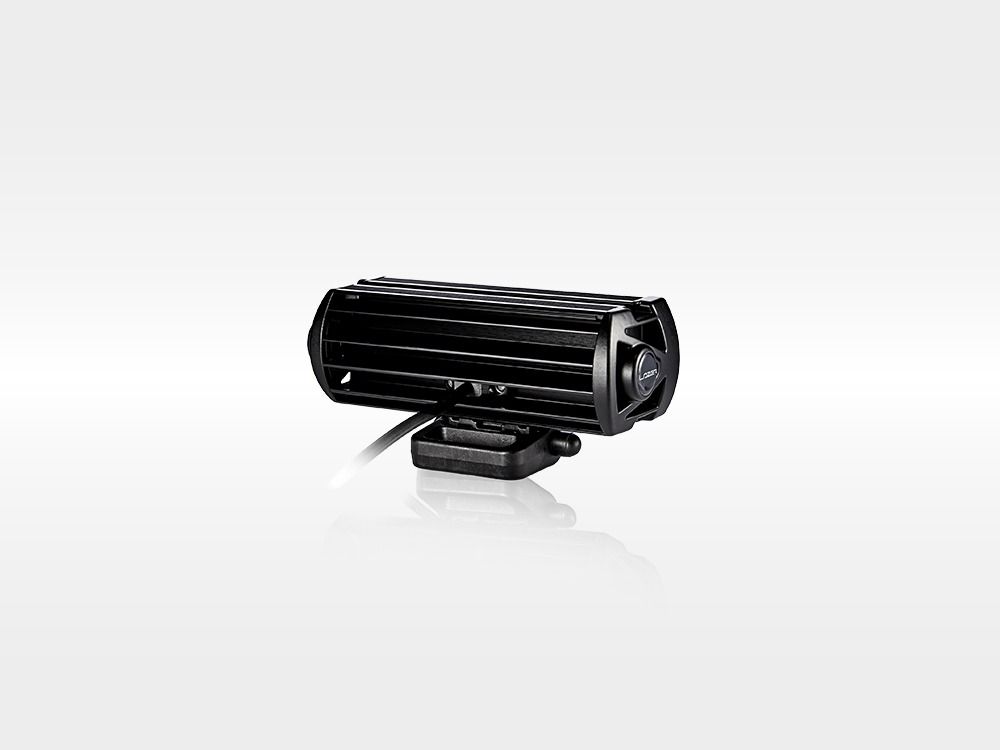

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 112 Class B Driving Lights for on-road high beam function

UNECE approved Reg 10

IP68 watertight

5 year warranty

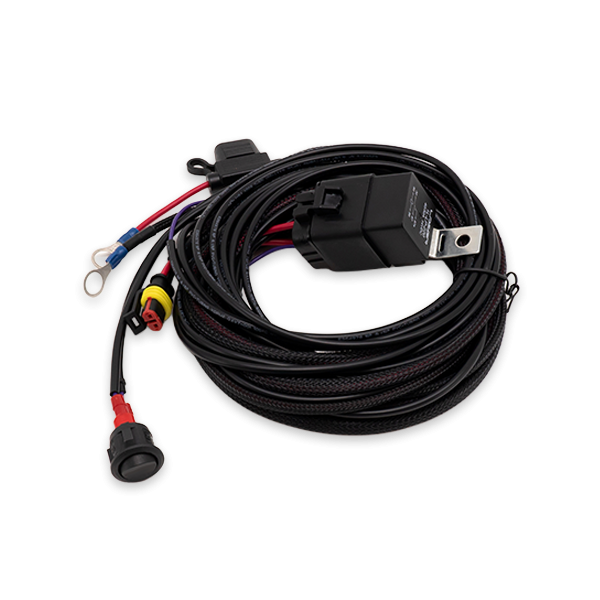

Supplied with pre-wired male/female 2-pin superseal connectors

Designed and manufactured in UK

Technical Specifications

Based on: 1x ST4 Evolution.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 670 gr
HIGH BEAM FUNCTION
Total Luminous Flux 4136 Lm
Total Driver 'FOV' Flux † 2490 Lm
Colour Temperature 5000K
Number of High Output LEDs 4
Power Consumption 47 Watts
Current Draw (at 14.4V) 3.3 Amps
CERTIFICATION
High Beam ECE R112
ECE Reference 10
DIMENSIONS
Width 204 mm
Depth 68 mm
Height 64 mm

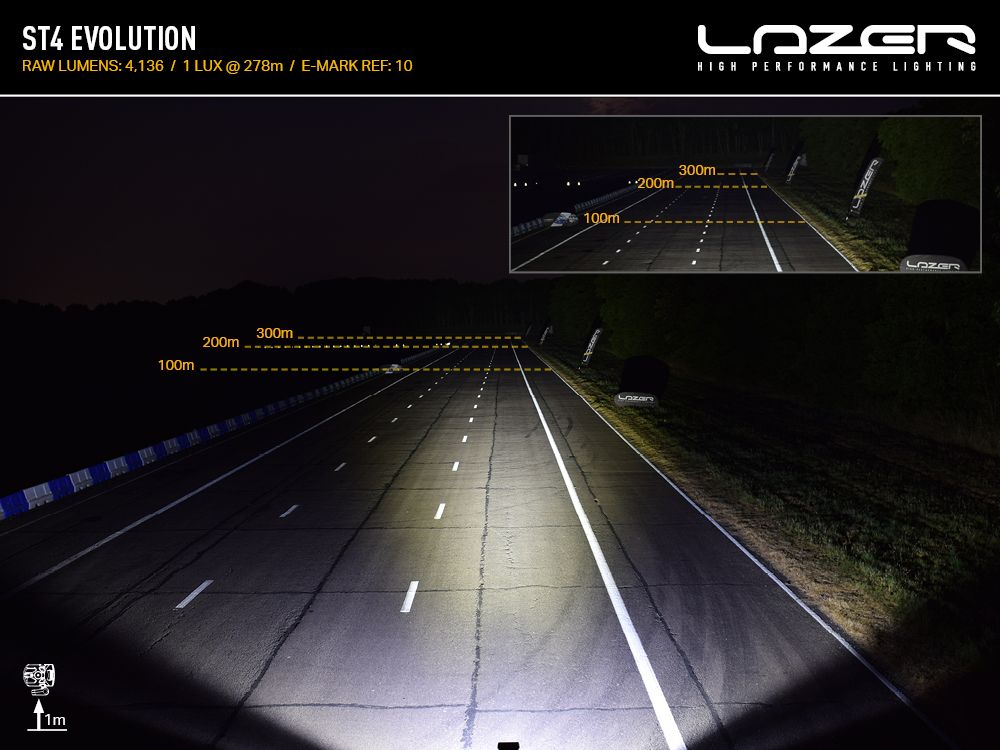

PHOTOMETRIC DATA
Horizontal Beam Angle 40°
0.25 lx Line 555 metres
0.5 lx Line 393 metres
1 lx Line 278 metres
3 lx Line 160 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 ST4 Evolution LED Spotlight
  • x1 Centre Mount (1114K)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
