Triple-R 1000 with Beacon

Product Code
#00R8-BCN

From €510.00

To €675.00

Triple-R 1000 with Beacon

In stock

€510.00

Find a
Stockist

The iconic Triple-R 1000, a firm favourite amongst the heavy truck and LCV sectors, is now offered with integrated amber flashing beacon function. Incorporating 16 different forward-facing flash patterns, the additional safety functionality within the lamp, combines with the possibility to connect a white or amber position/side light function, as well as the exceptional high beam driving light function to really set the Triple-R 1000 apart from the competition.

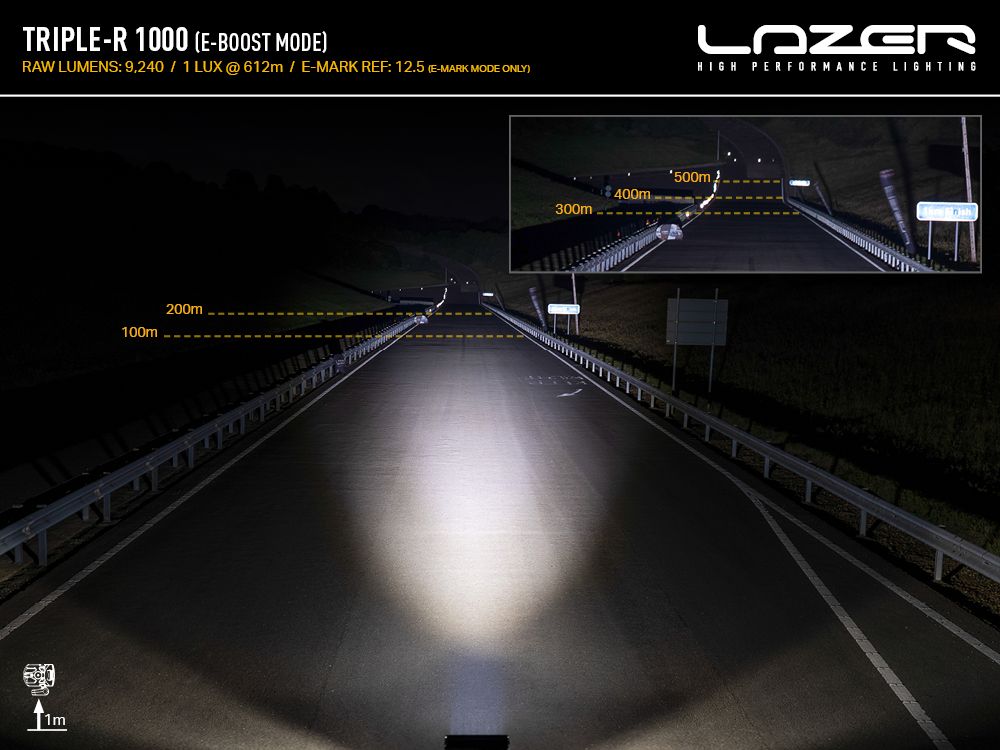

The Triple-R 1000 is a high-performance driving light that delivers a spot beam pattern well suited to road use. Recent styling updates to the Triple-R range have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. Boasting 9,240 lumen, and delivering 1 lux to 612m (E-Boost mode), the auxiliary LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle. Dual-output ‘E-Boost’ technology allows for operation within ECE Regulation 112 parameters, when the supplied E-Boost cap is removed, and where country regulations demand for on-road use in parallel with your vehicle’s standard high beam driving lights.

Included within the lamp is the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 1000 act as a high beam driving light only. The position light function (white only) is approved to ECE regulation 7, to operate in parallel with your standard vehicle lights.

Including flash patterns approved to ECE Regulation 65 as a warning light, there are 16 different amber warning light settings which can be selected and synchronised (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand. Examples of the different flash patterns can be seen in the Videos section below.

Like all Lazer products, the Triple-R 1000 with Beacon function has been designed and engineered to deliver a powerful driving light with perfectly homogenous beam pattern. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time. Performance is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Triple-R 1000 with Beacon

Highly efficient 11W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Integrated amber flashing beacon function – 16 flash patterns (incl UNECE Reg65 option)

Integrated white and amber position light function

Ultra-reflective vacuum-metallised optics deliver spot beam pattern

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)

Contemporary lamp design – Black or White colour options

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP68 watertight

5-year warranty

Supplied with pre-wired male/female 6-pin Superseal connectors

Designed & manufactured in UK

Technical Specifications

Based on: 1x Triple-R 1000 with Beacon.

  Boost
Mode
Low Output Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs
Weight 1.7 kg 1.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux

9240 Lm

1848 Lm

Total Driver 'FOV' Flux † 5572 Lm 1114 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 8 8
Power Consumption 88 Watts 17.6 Watts
Current Draw (at 14.4V) 6.1 Amps 1.2 Amps
CERTIFICATION
IP Rating IP68 IP68
Work Lamp ECE R10 ECE R10
High Beam N/A ECE R112
E-Mark Ref N/A 12.5
Position Light (White) ECE R7 ECE R7
Beacon (Amber) ECE R65 ECE R65
OPERATING CONDITIONS
Salt Spray Test ISO 9227 (2000H) ISO 9227 (2000H)
Vibration (BS EN 60068)
10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Operating Temperature -40oC … +90oC -40oC … +90oC
PHOTOMETRIC DATA
Horiz Beam Angle 19 Deg 19 Deg
0.25 lx Line 1225 metres 548 metres
0.5 lx Line 866 metres 387 metres
1 lx Line 612 metres 274 metres
3 lx Line 354 metres 158 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 Triple-R 1000 LED Lamp with Beacon Function
  • x2 Centre Mount (1114k)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
