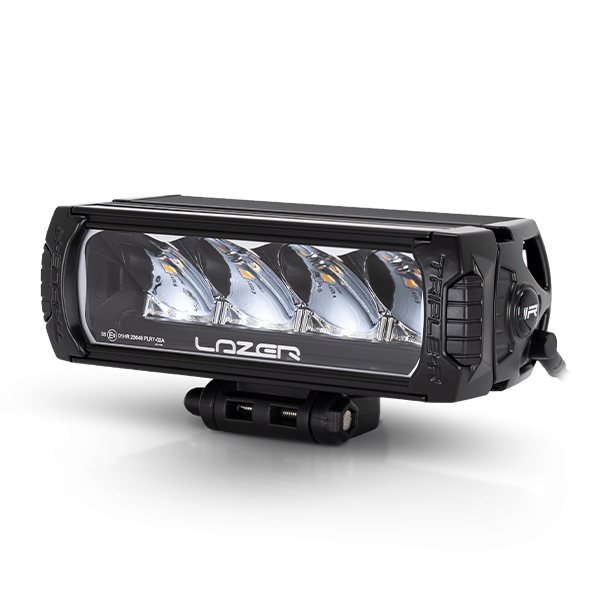

Triple-R 750 Wide

Product Code
#00R4-G2-WIDE-B

From €235.00

To €275.00

Triple-R 750 Wide   + €235.00
Triple-R 750 Wide

In stock

€235.00

Find a
Stockist

The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.

With the exception of the Triple-R 750 Wide, all standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.

Available in a variety of sizes from the 230mm (9”) Triple-R 750 to the 1305mm (51”) Triple-R 28 Elite, all Triple-R products up to the 590mm (23”) Triple-R 1250, benefit for approval to UNECE Regulation 112 as a high beam driving light. In many cases certification is only achieved using dual-output E-Boost technology, allowing the lamp to be used in both E-Boost or E-Mark Compliant mode depending on country-specific regulations and whether the light(s) are being used on or off-road.

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Triple-R 750 Wide

Highly efficient 11W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

UNECE Reg 149 Class B Driving Light, approved for on-road high beam

A wide 40 degrees left/right spread of light qualifies the lamp for a lower E-Mark Reference number - 20

Ultra-reflective vacuum-metallised optics deliver long-range beam pattern

Contemporary lamp design

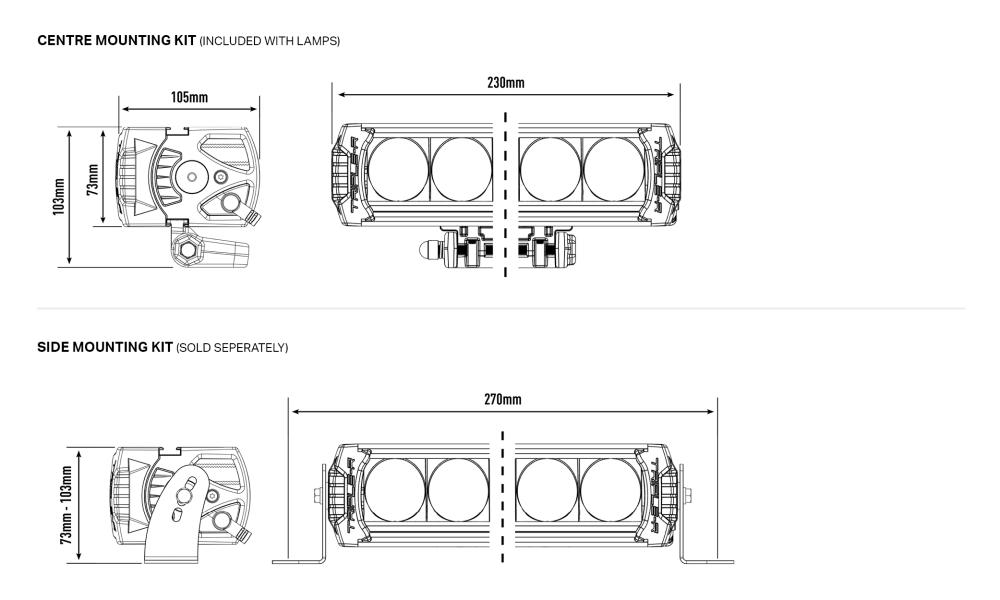

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP68 watertight

5-year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed & manufactured in UK

Technical Specifications

Based on: 1x Triple-R 750 Wide.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
IP Rating  IP 68
Weight 1 kg
HIGH BEAM FUNCTION
Total Luminous Flux 4620 Lm
Total Driver 'FOV' Flux † 2633 Lm
Colour Temperature 5000k
Number of High Output LEDs  4
Power Consumption 44 Watts
Peak Current Draw (10V) 4.4 Amps
Current Draw (14.4V) 3.1 Amps
CERTIFICATION
High Beam ECE R149
E-Mark Ref 20

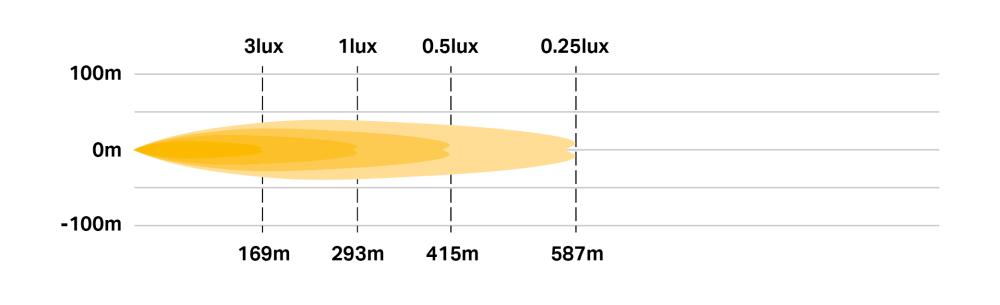

PHOTOMETRIC DATA

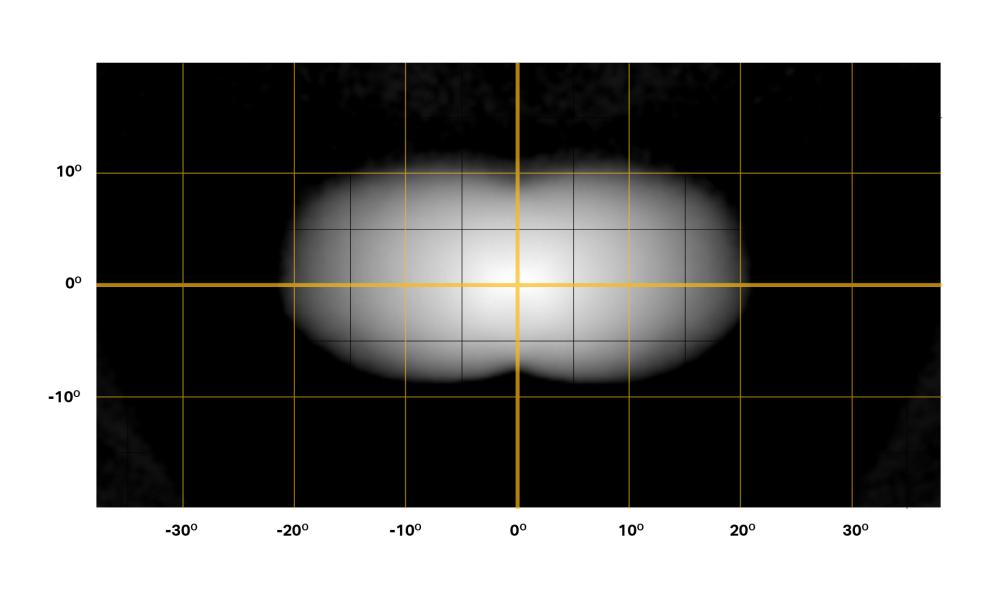

Horiz Beam Angle 40o
0.25 lx Line 587m
0.5 lx Line 415m
1 lx Line 293m
3 lx Line 169m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 Triple-R 750 Wide LED Lamp
  • x1 Centre Mount (1114K)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
