Universal Rally Kit (2-Lamp)

Product Code
#UNI-RK-2L

From €1,125.00

To €1,200.00

Boomer Single (for Carbon-6)   + €125.00
Carbon-6 Spot (Gen3)   + €500.00
Carbon-6 Drive (Gen3)   + €500.00
Universal Rally Kit (2-Lamp)

In stock

€1,125.00

Find a
Stockist

Utilising our Boomer Single quick-fit and release bonnet mounting system, combined with a single Carbon-6 Drive and Carbon-6 Spot high performance LED driving lights, this universal fit, ultra-lightweight rally lighting system is designed to deliver a WRC spec lighting solution for competitors even on a limited budget.

Once assembled, the complete lighting kit weighs 1300g, but don’t let the diminutive weight mislead you, the lights combine to produce 18,720 raw lumen, with 1lux extending to 900m with 60 degrees of left/right spread. The colour temperature at 5000K, combined with the perfectly homogenous light distribution has been tested and approved at the top levels of WRC.

The suitability of the lights to rally applications is furthered by the option to operate the lights in a secondary ‘fog’ mode, where the distribution of the light output is modified accordingly. The lights can also be toggled to operate within UNECE ‘road-legal’ regulations, where events demand it. The addition of Black and Amber lens covers included with each light also adds to the lamps looks and functionality.

Assembly required. Wiring kit sold separately.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Universal Rally Kit (2-Lamp)

Universal lightweight bonnet mounting system

Complete with 1x Carbon-6 DRIVE and 1x Carbon-6 SPOT LED driving lights

Quick fit and release

Universally compatible with any vehicle

Multiple lighting modes including secondary ‘fog’ beam pattern

Assembly required

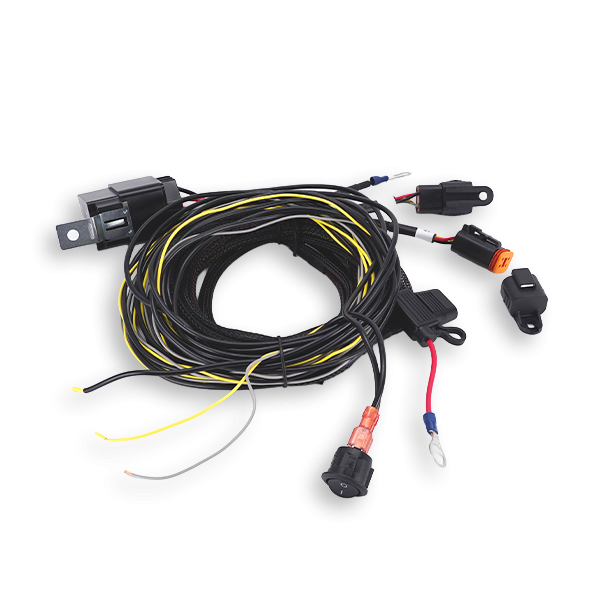

Compatible vehicle wiring kit available – sold separately

Manufactured in the UK

5 year warranty

Technical Specifications

Based on: 1x Carbon-6 DRIVE and 1x Carbon-6 SPOT in E-Boost Mode.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Quick Release Capable Yes
HIGH BEAM FUNCTION
Total Luminous Flux 18720 Lm
Total Driver 'FOV' Flux † 13050 Lm
Colour Temperature 5000K
Number of High Output LEDs 2 x 36
Power Consumption 170W
Current Draw (at 14.4V) 12A
PHOTOMETRIC DATA
0.25 lx Line 1811m
0.5 lx Line 1281m
1 lx Line 906m
3 lx Line 523m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 1x Boomer Mounting Kit for 2x Carbon-6
  • 1x Carbon-6 Spot
  • 1x Carbon-6 Drive

Assembly instructions are available in the downloads section below.
