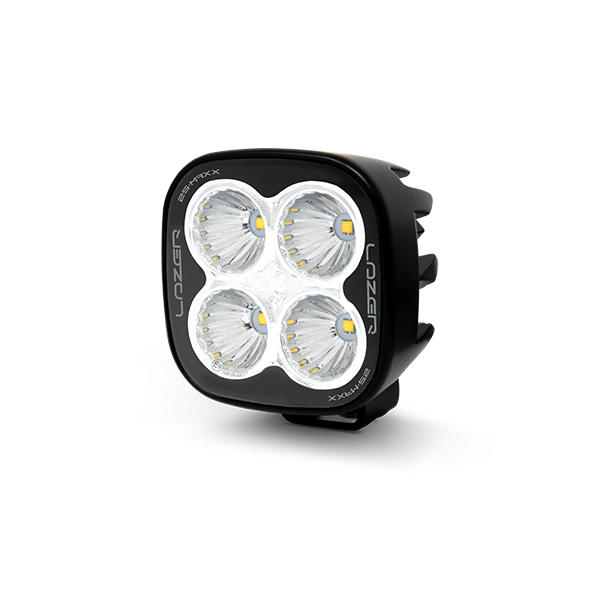

Utility-25 MAXX

Product Code
#00U25-MAXX

From €120.00

To €212.40

Utility-25 MAXX   + €120.00
Utility-25 MAXX

In stock

€120.00

Find a
Stockist

The latest in the Lazer Lamps’ range of LED work lights, the Utility-25 MAXX is a hugely versatile, medium-duty work light. The lamp incorporates higher output 11W LEDs to deliver seriously impressive lighting performance, especially considering the lamps’ comparatively small proportions, something made possible through continued improvements in LED electronics design, coupled with the lamps’ robust physical design. Sharing product DNA with the larger Utility-45 and Utility-80 heavy duty work lights, the lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.

Measuring 80mm x 80mm, and capable of operating between 9-32V, the Utility-25 MAXX utilises highly efficient 11W LEDs from a world-leader in LED design and manufacture. Like all Lazer products, the colour temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallised optics harness the 4,560 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves.

Designed and manufactured in the UK, the Utility-25 MAXX is a product built to last, and to withstand harsh environments, backed up by a comprehensive 5yr warranty*. The polycarbonate lens with hardcoat, is bonded in place to guarantee water-tightness (IP69K), while the lamps have undergone extensive testing to comply with EU regulations in relation to vibration, shock, and corrosion resistance. Advanced electronic design ensures full EMC protection to CISPR-25 (Class 4)† standards.

Supplied with male/female Deutsch connectors (part no. DT04-2S/DT04-2P), the Utility-25 MAXX also comes supplied with a satin black-painted stainless-steel mounting system, which allows flexibility in mounting the light in many different orientations.



* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

† - CISPR-25 (Class 4) applies to 12V usage only unless specified.



PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Utility-25 MAXX

ECE (Reg 10) approved Work Light

CAE optimised 'Matrix' cooling system

Advanced optical design delivers superior lighting performance

Electronic thermal management

Certified IP67/IP69K watertight

Automotive grade corrosion resistance (ISO 9927 / BS EN 60068)

5,000 kelvin light temperature for maximum definition

EMC protected - CISPR 25: 2008 (Class 4) certified

Vibration Certified (BS EN 60068) : 10Hz - 2000Hz, 1 oct/min, 10gn

Over voltage protected

Reverse polarity protected

Male and female 2-pin Deutsch connectors included

5 Year warranty*

Made in Britain

Technical Specifications

1x Utility-25 MAXX LED Work Light


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 0.36 kg

HIGH BEAM FUNCTION
Total Luminous Flux 4,560 Lm
Effective Lumens † 3,995 Lm
Colour Temperature 5000K
Power Consumption 45 Watts
Current Draw (14.4V) 3.1 Amps
Connector 2-Pin Deutsch DT (+28cm Cable)

DIMENSIONS
Width 80 mm
Depth 56 mm
Height 80 mm

CERTIFICATION
IP Rating # IP68 / IP69K
EMC Certification ECE R10
EMC Protection CISPR-25 (Class 4)
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

OPERATING CONDITIONS
Operating Temperature -40oC … +90oC
Vibration (BS EN 60068) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 78° / 78°
1 Lux 71m
5 Lux 32m
20 Lux 16m
50 Lux * 10m




† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

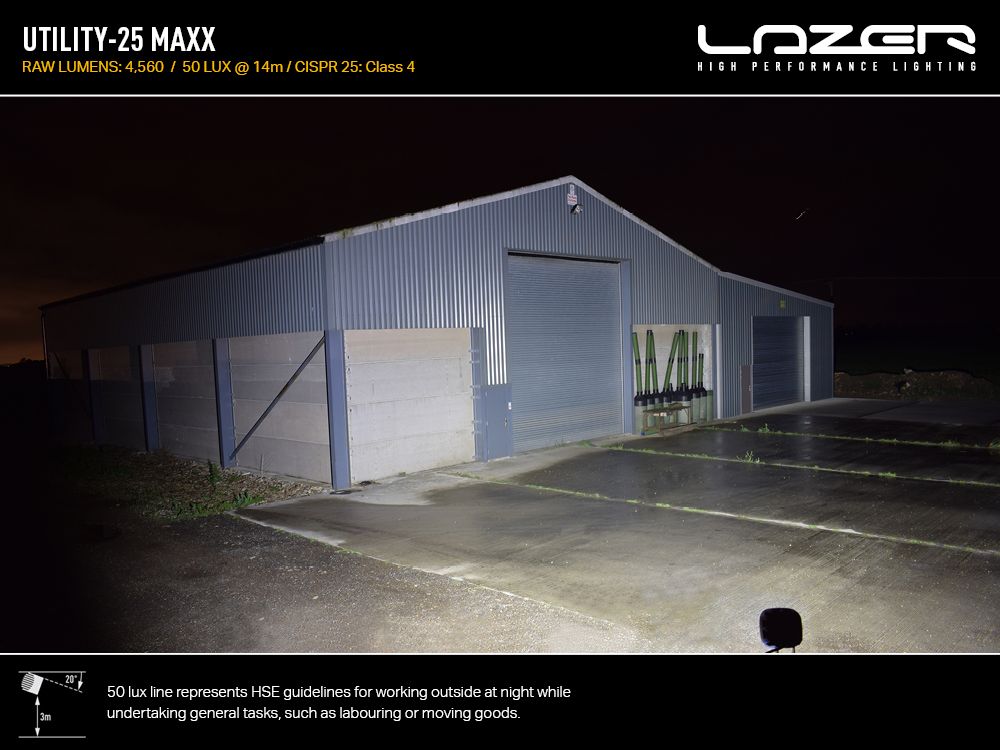

* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Utility-25 MAXX Work Lamp
  • 1x Uility-25 Centre Mount (supplied attached to lamp)
