Utility-80

Product Code
#00U80
€210.00

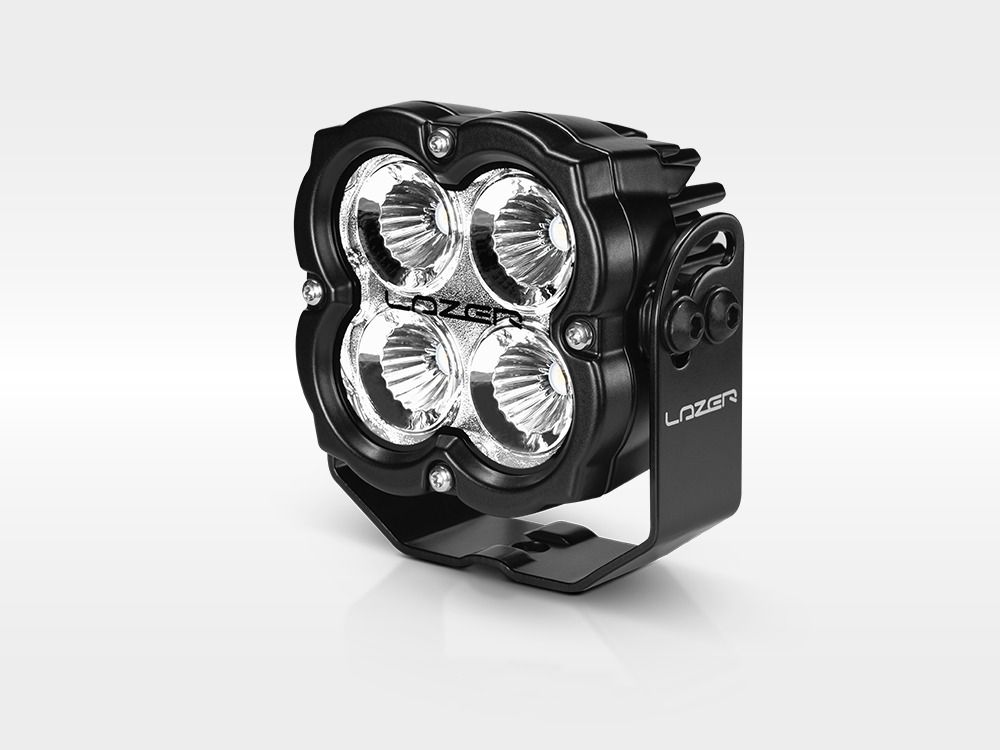

Utility-80

In stock

€210.00

Find a
Stockist

The Utility-80 (Gen2) is a heavy-duty work light upgraded in 2018 that represents the very best lighting performance through greater intensity and improved spread of light, compared to all other work light solutions of a comparable size and power consumption. Only through advanced material and electronic design has it been possible to harness the light output of 4x20W LEDs in a compact unit to deliver a consistently high level of light output more akin to much larger more expensive products.

Continued advances in, and adoption of the latest, and best, LED technology means the Utility Series stands apart from other work light solutions. 80W of LED power delivers 8,820 raw lumens which is harnessed through ultra-reflective, vacuum-metallised optics designed and engineered using the most sophisticated CAD design and light simulation software available. The result – more light distributed over a bigger area; the 50 Lux line, defined in HSE guidelines as the minimum effective illumination for working outdoors at night, is achieved at 14m, and with a spread of 74o. Furthermore the LEDs have been carefully selected for their colour temperature, proven to maximise definition while reducing fatigue and strain that can come from using higher colour ranges.

The consistently high level of light output is maintained through an innovative CAE optimised 'Matrix' cooling system; the increased surface area ensures heat generated during operation of the lamp is more efficiently dissipated away from the unit. This process allows the light output to be maximised for longer, simultaneously the Electronic Thermal Management system optimises light output considering the environmental and thermal conditions of the lamp.

Lighting performance aside, the Utility Series is a product built to last, and to withstand the harshest of environments. With a comprehensive 5 year warranty*, the lamps have been extensively tested to comply with EU regulations in relation to vibration, shock, corrosion resistance, and water ingress, and alongside a super-tough construction, advanced electronic design ensures full EMC protection to CISPR-25 (Class 3) standards.

Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-80 is available with a choice of ‘Wide’ or ‘Slimline’ mounting bracket, and an ADR approved variant is also available.

* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Utility-80

UNECE approved Work Light (Reg 10)

High density, premium ‘bin’ LEDs

Advanced optical design delivers superior lighting performance

CAE optimised 'Matrix' cooling system offers improved thermal dynamics

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

EMC protected - CISPR 25: 2008 (Class 3)

Over voltage protected

Reverse polarity protected

ADR compliant versions available (does not cover vehicle side connections)

Optional Quad Core Dampening System protects against vibration (Wide Mount compatible only)

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP67 watertight

5-year warranty*

Supplied with pre-wired male/female 2-pin Deutsch connectors

Designed and manufactured in UK

* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

Technical Specifications

1x Utility-80 LED Work Light


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 1.26 kg

HIGH BEAM FUNCTION
Total Luminous Flux 8,820 Lm
Effective Lumens † 7,762 Lm
Colour Temperature 5000K
Power Consumption 80 Watts
Current Draw (14.4V) 5.5 Amps
Connector 2-Pin Deutsch DT (+28cm Cable)

DIMENSIONS
Width 110 mm
Depth 85 mm
Height 110 mm

CERTIFICATION
IP Rating # IP68 / IP69K
EMC Certification ECE R10
EMC Protection CISPR-25 (Class 3)
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

OPERATING CONDITIONS
Operating Temperature -40oC … +90oC
Vibration (BS EN 60068) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 74° / 74°
1 Lux 95m
5 Lux 43m
20 Lux 21m
50 Lux * 14m




† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Utility-80 Work Lamp
  • 1x Slim or Wide Mount (supplied attached to lamp)
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
Write Your Own Review
You're reviewing:Utility-80
Your Rating
