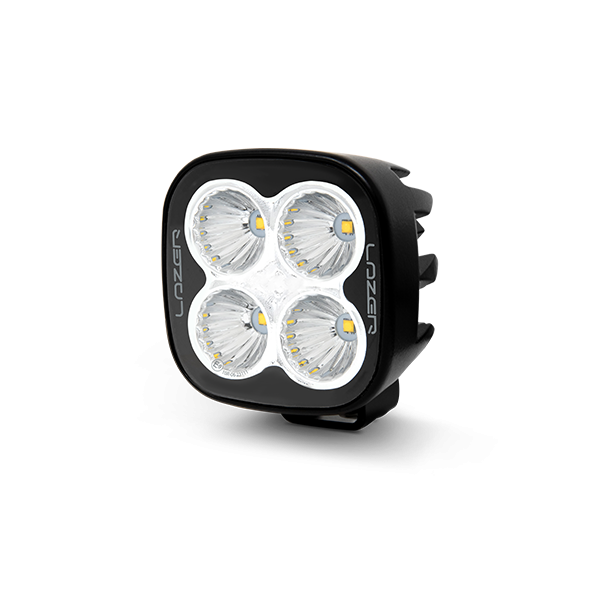

Utility-25

Rating:
100%
Product Code
#00U25

From €17.40

To €197.40

Utility-25

In stock

€17.40

Find a
Stockist

The Utility-25 is a hugely versatile, medium-duty work light, which through the latest advances in LED lighting technology, gives superior levels of light output considering its compact size. Sharing product DNA with the larger Utility-45 and Utility-80 heavy duty work lights, the lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.

Measuring 80mm x 80mm, and capable of operating between 9-32V, the Utility-25 utilises highly efficient 6W LEDs from a world-leader in LED design and manufacture. Like all Lazer products, the colour temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallised optics harness the 3,016 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves.

Designed and manufactured in the UK, the Utility-25 is a product built to last, and to withstand harsh environments, backed up by a comprehensive 5yr warranty*. The polycarbonate lens with hardcoat, is bonded in place to guarantee water-tightness (IP69K), while the lamps have undergone extensive testing to comply with EU regulations in relation to vibration, shock, and corrosion resistance. Advanced electronic design ensures full EMC protection to CISPR-25 (Class 5†) standards.

Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-25 also comes supplied with a satin black-painted stainless-steel mounting system, which allows flexibility in mounting the light in many different orientations.



* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

† - CISPR-25 (Class 5) applies to 12V usage only unless specified.



PAYMENT INFORMATION

Please note all transactions are completed in Euros:
If you plan to reclaim VAT on any purchase and require a VAT receipt from your specific country, you will need to instead purchase through one of our local distributors.

Visa / Mastercard / AmexSecure Payment

DELIVERY – EU CUSTOMERS

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Lazer Lamps’ warehouse in Belgium. At the checkout stage you will be given the option for Standard or Express shipping options. For more information visit our Delivery Information page. For lower cost, expedited deliveries, with country-specific VAT receipts, we would always encourage purchases to be made through one of our local distributors.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Please visit www.lazerlamps.com for deliveries required outside of the EU.

Utility-25

UNECE approved Work Light (Reg 10)

High density, premium ‘bin’ LEDs

Advanced optical design delivers superior lighting performance

CAE optimised 'Matrix' cooling system offers improved thermal dynamics

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

EMC protected - CISPR 25: 2008 (Class 5)

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP69 watertight

5-year warranty*

Supplied with pre-wired male/female 2-pin Deutsch connectors

Designed and manufactured in UK



Technical Specifications

1x Utility-25 LED Work Light


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 0.36 kg

HIGH BEAM FUNCTION
Total Luminous Flux 3,016 Lm
Effective Lumens † 2,642 Lm
Colour Temperature 5000K
Power Consumption 25 Watts
Current Draw (14.4V) 1.6 Amps
Connector 2-Pin Deutsch DT (+28cm Cable)

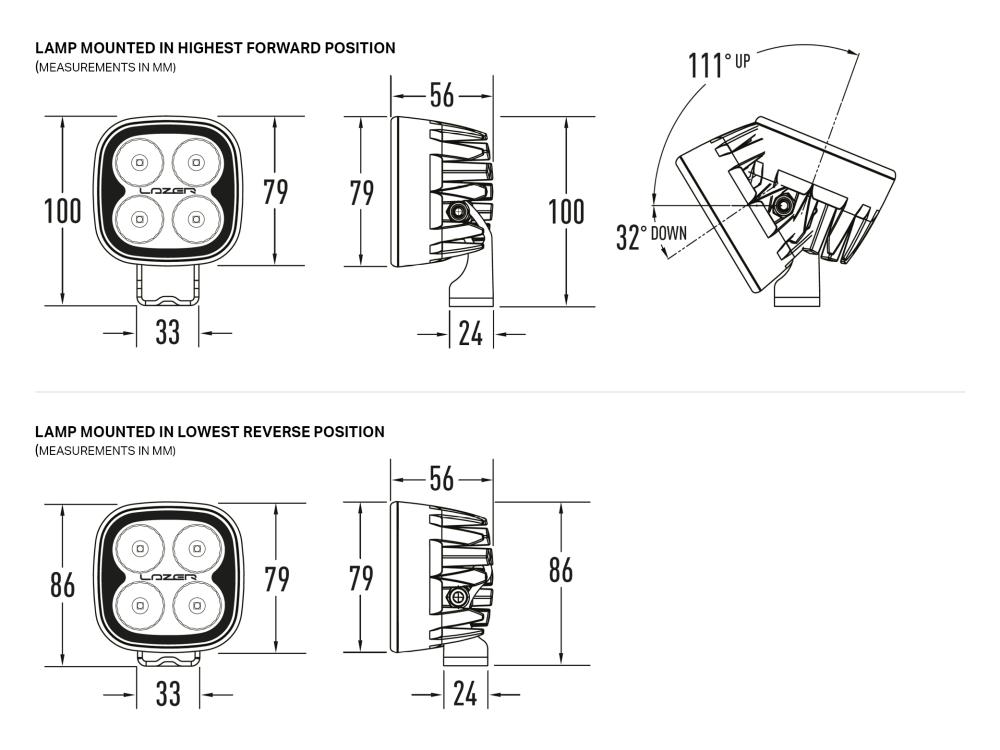

DIMENSIONS
Width 80 mm
Depth 56 mm
Height 80 mm

CERTIFICATION
IP Rating # IP68 / IP69K
EMC Certification ECE R10
EMC Protection CISPR-25 (Class 5)
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

OPERATING CONDITIONS
Operating Temperature -40oC … +90oC
Vibration (BS EN 60068) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz

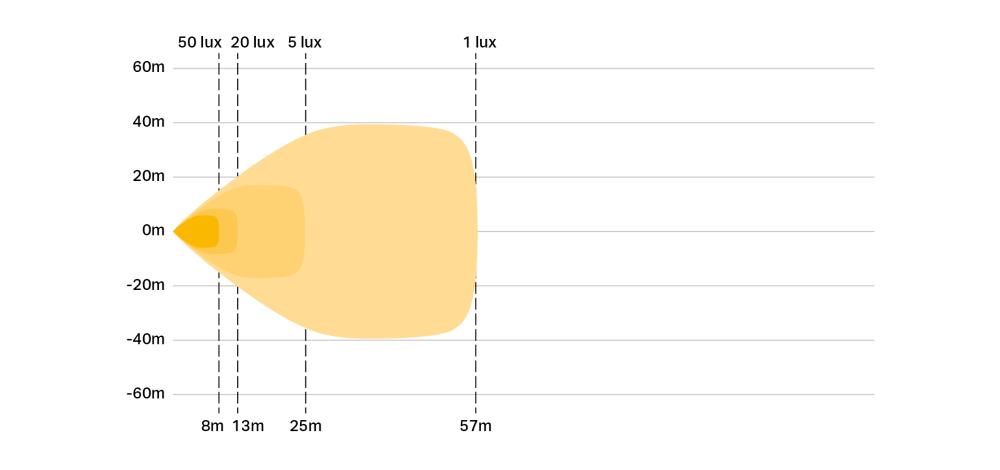

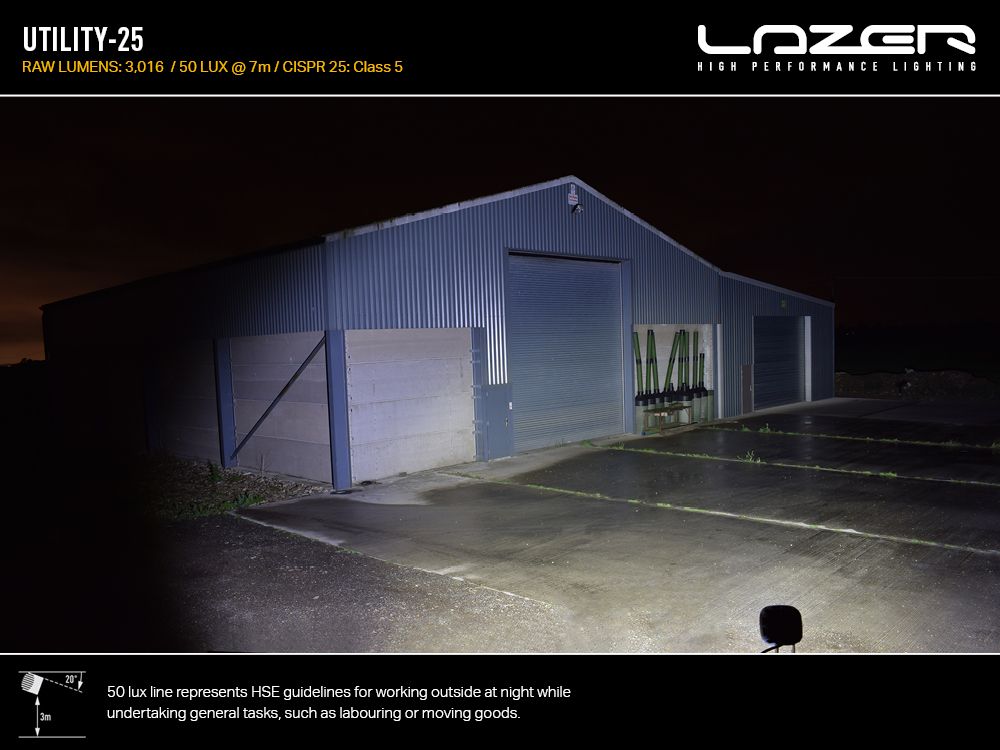

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 78° / 78°
1 Lux 57m
5 Lux 25m
20 Lux 13m
50 Lux * 8m




† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Utility-25 Work Lamp
  • 1x Uility-25 Centre Mount (supplied attached to lamp)
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
