Sentinel 9” Elite - Gen2

Product Code
#0S9-ELITE-PL2-SM

From £492.00

To £552.00

Sentinel 9'' Elite with Position Light (Gen2) - Black   + £492.00
Sentinel 9” Elite - Gen2

In stock

£492.00

Find a
Stockist

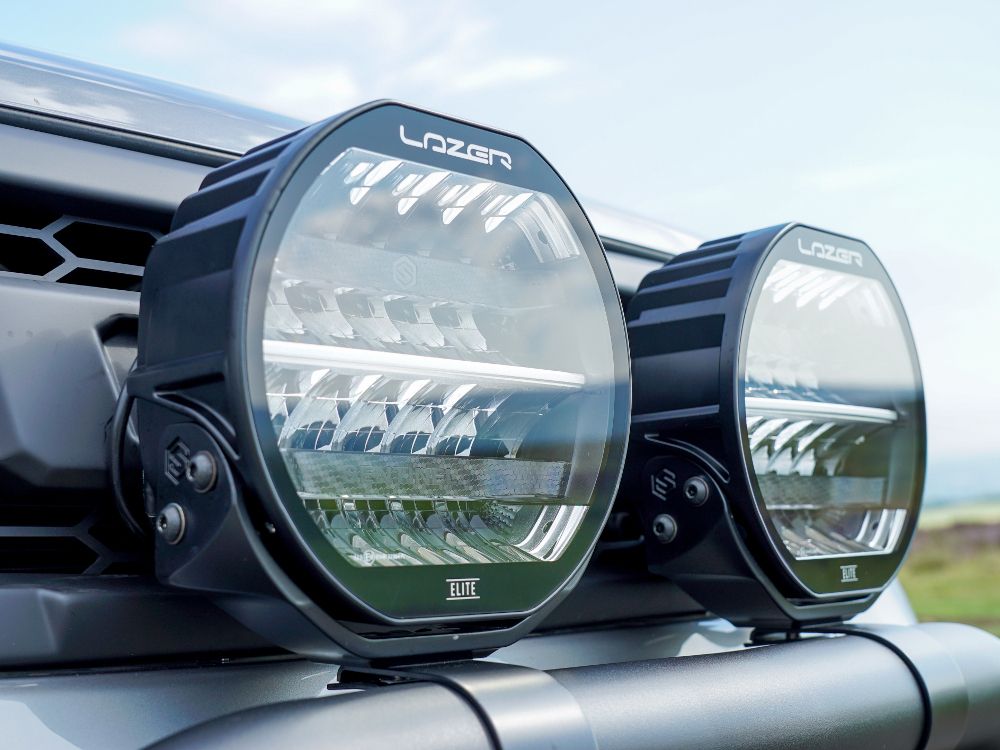

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. The Sentinel Elite ‘Gen2’ product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling with an updated position light / backlight feature for 2025, and optional dynamic welcome mode, ensures this is a product that stands out for all the right reasons.

Emitting 15,232 raw lumens, the lamps deliver 1 lux to 742m, but it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range that the Sentinel Elite really comes into its own. For a demonstration of the lighting performance, please click the videos section below. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg112 as an on-road high beam driving light.

The stealth design of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion. A range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

For customers looking for a dynamic start-up or welcome mode, when starting your vehicle or turning on your side/position lights, the Sentinel ‘Gen2’ products can be activated to either gradually brighten at start-up, or gradually brighten while cycling between the white and amber colours (or vice versa).

As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Sentinel 9” Elite - Gen2

Combination of 32 premium ‘bin’ LEDs

Black PCB and bezel detail result in stealth black internal appearance

5000K LED colour temperature and 80CRI maximises sharpness and definition

Ultra-reflective vacuum-metallised spot and wide optics

Flash-to-dim functionality for avoiding glare from road signs (for example)

Dual-output functionality – High and Low output modes

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (Low Output mode only) and Reg 148 position/side light function (white only).

Dynamic start-up / Welcome Mode – two options activated as/if required.

Contemporary lamp design

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

A2 stainless steel fasteners with automotive grade black coating

Supplied with Lazer branded black lens cover

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 3-pin Superseal connectors

Designed & manufactured in UK

Technical Specifications
1x SENTINEL 9'' ELITE

BOOST
MODE

LOW OUTPUT/
E-MARK MODE


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 2.5 kg

HIGH BEAM FUNCTION
Total Luminous Flux 15,232 Lm 3,046 Lm
Total Driver 'FOV' Flux † 9,048 Lm 1,809 Lm
Colour Temperature 5000K
Power Consumption 145 Watts 29 Watts
Peak Current Draw 15.1 Amps 3 Amps
Current Draw (14.4V) 10.1 Amps 2 Amp
Connector 3-Pin Superseal (+25cm Cable)

DIMENSIONS
Width 225mm
Depth 90mm
Height 230mm

CERTIFICATION
IP Rating # IP68
High Beam (E9 approval) ECE R112 - Ref: 20 (in Low Output Mode only)
Position Light (white only) ECE R148
EMC Certification ECE R10
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 52° / 14°
0.25 lx Line 1483m 663m
0.5 lx Line 1049m 469m
1 lx Line 742m 332m
3 lx Line 428m 191m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 Sentinel 9'' Elite with Position Light - Gen2 (Black)
  • x1 'Slim' Mount Kit (1141k)
  • x1 'Lazer' Black Lens Cover (LC-BLK-0S9)
  • x1 Installation Instructions
