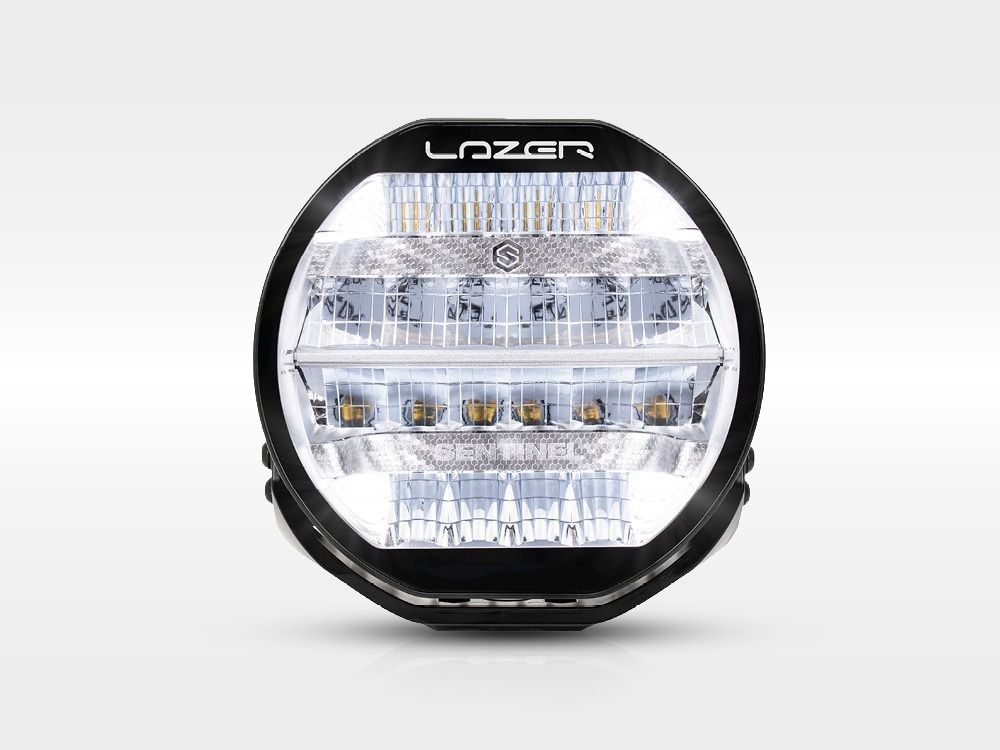

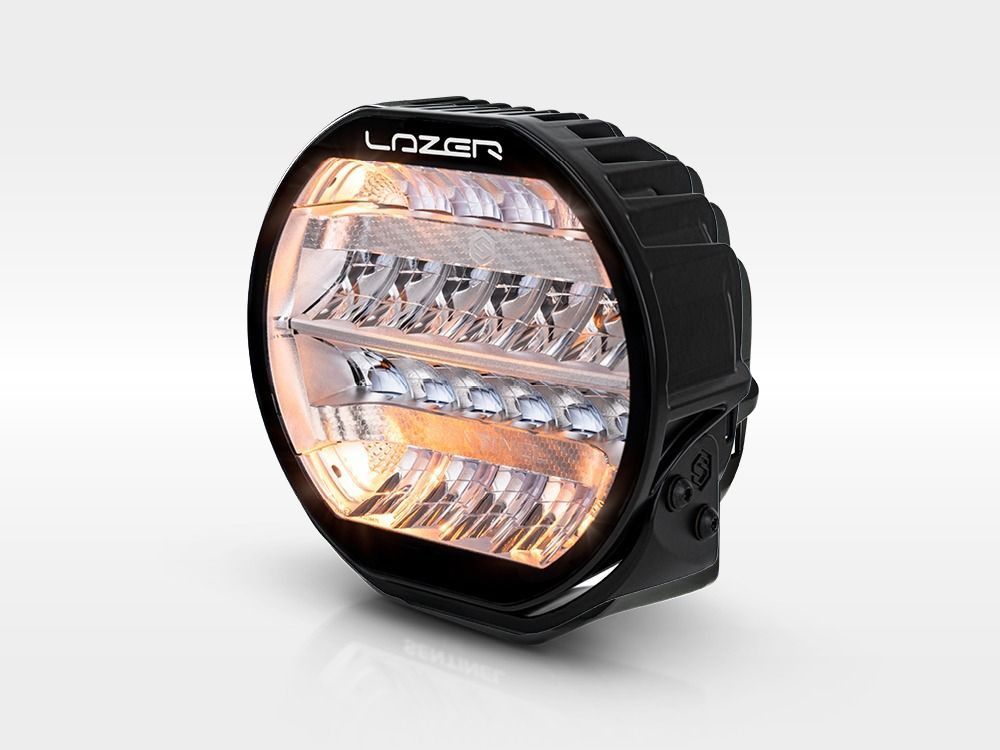

Sentinel 9'' with Position Light (Black)

Product Code
#0S9-PL-SM

From £396.00

To £447.60

Sentinel 9'' (Black) - with Slim Mount   + £396.00
Sentinel 9'' with Position Light (Black)

In stock

£396.00

Find a
Stockist

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. Available in Standard or Elite grades, the former incorporates 20 high power LEDs and comes available with either a black or chrome finish inside the lamp. The Elite product by comparison is only available with the black internal appearance, but with a combination of 32 high power LEDs, represents the very best lighting performance as expected from a product bearing the ‘Elite’ tag.

Both Sentinel Black and Chrome lamps, in the ‘Standard’ range, produce the same lighting performance. Emitting 9,529 raw lumens, the lamps deliver 1 lux reaching to over 700m; impressive in itself, but considering the 52 degrees horizontal beam angle, this is a product that has been designed to deliver maximum visibility for all manner of road and off-road use. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.

The stealth design of the black variant of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. Within the lamp, there is the option to connect white or amber position/side light function, for an even more distinct look, with the white version approved to UNECE Regulation 7.

The lamps are supplied with a ‘slim’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion. An alternative ‘wide’ mounting bracket, along with a range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Sentinel 9'' with Position Light (Black)

Combination of 20 premium ‘bin’ LEDs

'Stealth' appearance from black internal bezel, plus black circuit boards

Integrated white and amber position light function

Ultra-reflective vacuum-metallised spot and wide optics

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)

5000K LED colour temperature and 80CRI maximises sharpness and definition

Contemporary lamp design

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

A2 stainless steel fasteners with automotive grade black coating

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 3-pin Superseal connectors

Designed & manufactured in UK

Technical Specifications

Based on: 1x Sentinel 9'' LED Lamp.

  Boost Mode Low Output Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs
Weight 2.5 kg 2.4 kg
HIGH BEAM FUNCTION
Total Luminous Flux

9520 Lm

1904 Lm

Total Driver 'FOV' Flux † 5588 Lm  1118 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 20 20
Power Consumption 87 Watts 17 Watts
Current Draw (at 14.4V) 6 Amps 1.2 Amps
CERTIFICATION
High Beam N/A ECE R112
E-Mark Ref N/A 20
Position Light (White) ECE R7 ECE R7
PHOTOMETRIC DATA
Horiz Beam Angle 52 Deg 52 Deg
0.25 lx Line 1414 metres 632 metres
0.5 lx Line 1000 metres 447 metres
1 lx Line 707 metres 316 metres
3 lx Line 408 metres 183 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 Sentinel 9'' LED Lamp
  • x1 'Slim' Mount Kit (1141k)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
