Toyota Tacoma TRD (2024+) Grille Kit

Product Code
GK-TAC-(ELITE/LBA/PLUS)-02K

From £480.00

To £804.00

Toyota Tacoma TRD (2024+) Grille Kit

In stock

£480.00

Find a
Stockist

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lightbar within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

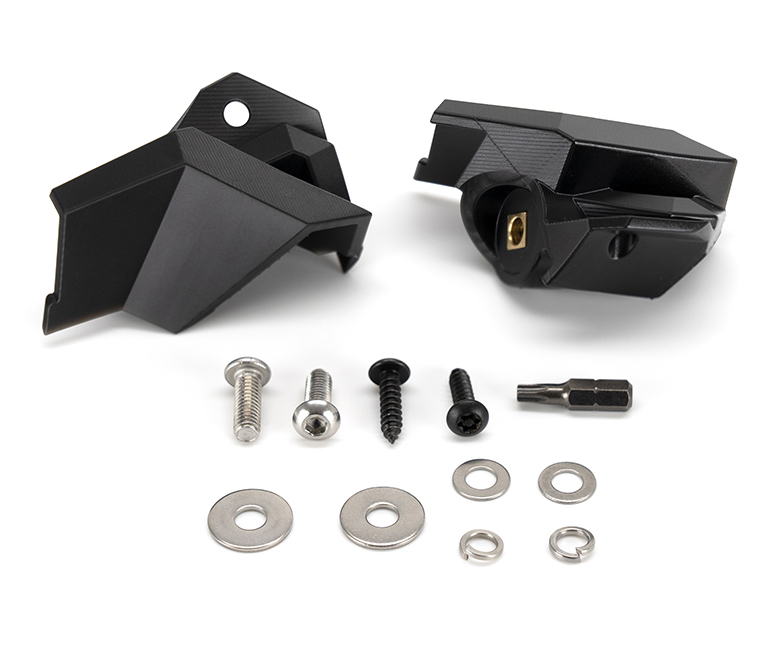

The Toyota Tacoma Kit, for vehicles produced since 2024, includes a Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA) High Performance LED lightbar, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

Please note, the Toyota Tacoma TRD (2024+) Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED Lightbar

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in GBP:

Paypal / Visa / Mastercard / AmexSecure Payment

DELIVERY – UK CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). At the checkout stage you will be given Standard (£10 ex VAT) or Express (£20 ex VAT) shipping options. For more information visit our Delivery Information page.

DELIVERY – EUROPE & REST OF THE WORLD

Global delivery symbol

Goods will be shipped via Express courier service within 2 working days of your order being placed (stock permitting). Goods are typically sent DAP (Delivered At Place) meaning you will be liable for country specific VAT, import duties, and courier disbursement fees. For more information please visit our Payment Terms page. To avoid unnecessary charges, we would encourage customers to consider buying from a local dealer. For a full list of countries we ship to, plus service levels and prices, please visit our Delivery Information page.

Toyota Tacoma TRD (2024+) Grille Kit

Bespoke vehicle integration kit for Lazer LED Spotlight installation

Custom fit for Toyota Tacoma TRD (2024+)

Compatible with models: Pre-Runner, Sport and Off-Road

Available with: Linear-18 (Standard, Elite, Elite+ or Elite with i-LBA) LED lightbar

Kit also includes bespoke mounting brackets and wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications


LINEAR-18

LINEAR-18
ELITE

LINEAR-18
ELITE+
(Boost / Low Output Mode)

LINEAR-18
ELITE+


Voltage Range (DC) 10-32V 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
Weight 2.4 lbs 2.4 lbs 2.4 lbs 2.4 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 6,750 Lm 12,150 Lm 14,850 / 4,455 Lm 18,000 Lm
Total Driver 'FOV' Flux † 4,806 Lm 8,651 Lm 10,573 / 3,172 Lm 12,816 Lm
Colour Temperature 5000K 5000K 5000K 5000K
Power Consumption 63 Watts 126 Watts 134 / 39 Watts 135 Watts
Current Draw (14.4V) 4.4 Amps 8.8 Amps 9.9 / 2.7 Amps 15 Amps
Connector 2-Pin Superseal
(+25cm Cable)
2-Pin Superseal
(+25cm Cable)
3-Pin Aptiv
(+25cm Cable)
4-Pin Deutsch DT
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68 IP68 IP68
High Beam (e9 approval) ECE R112 (Ref: 30) ECE R112 (Ref: 2x 25) ECE R149 (Ref: 27.5 - Low output mode only) ECE R112 (Ref: 17.5 - Low output mode only)
EMC Certification ECE R10 ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 56° / 13° 64° / 15° 84° / 20° 60° / 20°
0.25 lx Line 855m 975m 1,152m / 694m 1,043m
0.5 lx Line 605m 690m 815m / 491m 738m
1 lx Line 428m 488m 576m / 347m 522m
3 lx Line 247m 282m 333m / 200m 301m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 1x Linear-18 LED Lamp

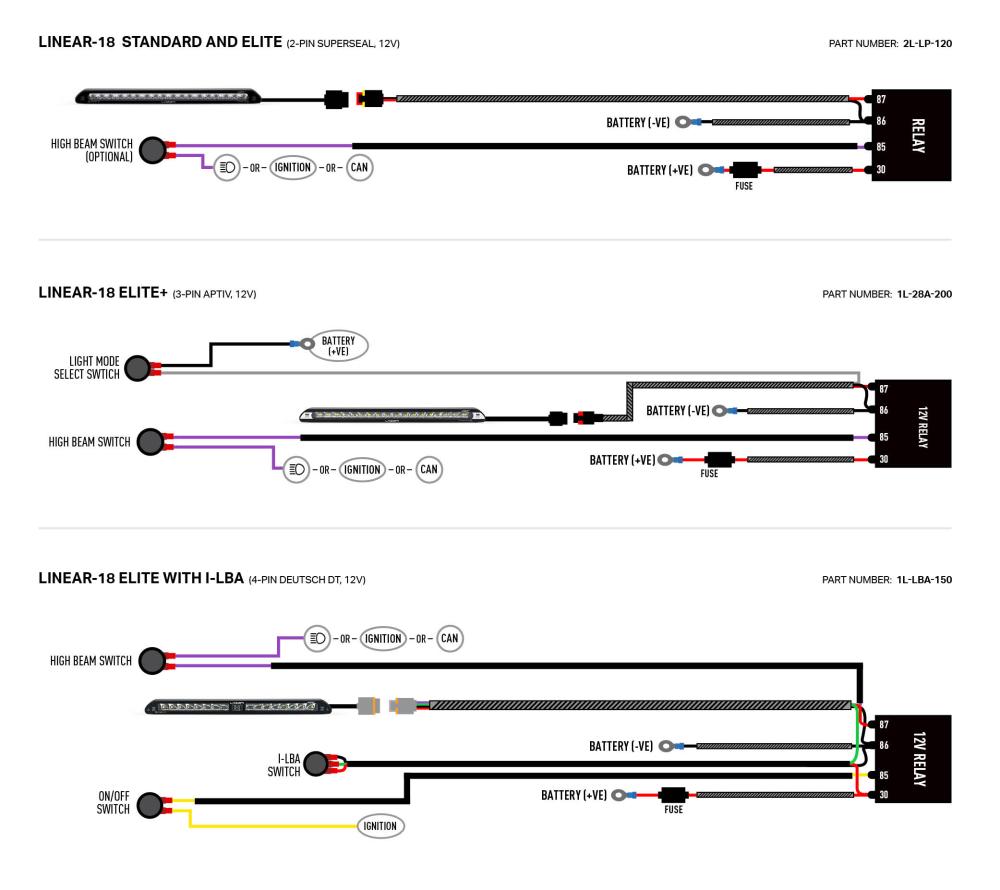

  • 1x One-Lamp Wiring Kit
  • Installation Instructions
