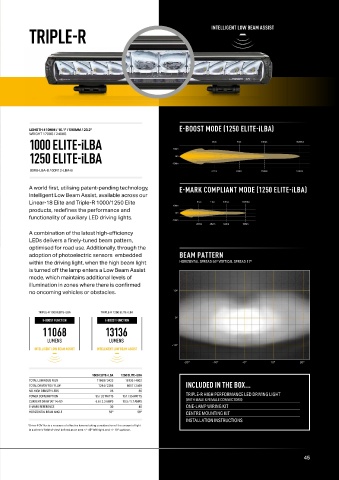

Page 45 - Product Catalogue 2023

TRIPLE-R

FIND OUT MORE

E-BOOST MODE (1250 ELITE-iLBA)
LENGTH 410MM / 16.1" / 590MM / 23.2" TRIPLE R 1250 ELITE WITH i LBA E BOOST MODE
WEIGHT 1700G / 2400G TRIPLE R 1250 ELITE WITH i LBA E BOOST MODE
1000 ELITE-iLBA 100m 3lux 1lux 0.5lux 0.25lux
1lux
0.5lux
3lux
0.25lux
1250 ELITE-iLBA 100m
0m
0m
-100m
-100m
00R8-LBA-B / 00R12-LBA-B 477m 826m 1168m 1652m
477m 826m 1168m 1652m
TRIPLE R 1250 ELITE WITH i LBA E MARK COMPLIANT MODE
TRIPLE R 1250 ELITE WITH i LBA E MARK COMPLIANT MODE
A world first, utilising patent-pending technology, E-MARK COMPLIANT MODE (1250 ELITE-iLBA)
Intelligent Low Beam Assist, available across our
3lux 1lux 0.5lux 0.25lux
Linear-18 Elite and Triple-R 1000/1250 Elite 100m 3lux 1lux 0.5lux 0.25lux
100m
products, redefines the performance and 0m
0m
functionality of auxiliary LED driving lights. -100m
-100m
261m 452m 640m 905m
261m 452m 640m 905m
A combination of the latest high-efficiency
LEDs delivers a finely-tuned beam pattern,
optimised for road use. Additionally, through the
BEAM PATTERN
adoption of photoelectric sensors embedded
within the driving light, when the high beam light HORIZONTAL SPREAD 56º VERTICAL SPREAD 17º
is turned off the lamp enters a Low Beam Assist 100 100
LAZER i-LBA FUNCTIONALITY mode, which maintains additional levels of 0m 0m
illumination in zones where there is confirmed -100
-100
10º 0m 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
no oncoming vehicles or obstacles. 0m 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
TRIPLE-R 1000 ELITE-iLBA TRIPLE-R 1250 ELITE-iLBA
0º
E-BOOST FUNCTION E-BOOST FUNCTION
11068 13136
LUMENS LUMENS
-10º
LOW BEAM HIGH BEAM LOW BEAM LOW BEAM -20º -10º -0º 10º 20º
MODE MODE ASSIST MODE ASSIST MODE
The vehicle is driving along The vehicle high beams are A vehicle comes from the Photoelectric sensors inside the 1000 ELITE-iLBA 1250 ELITE-iLBA
with the standard low beam driving activated simultaneously the Lazer opposite direction. The high beams light detect the car position TOTAL LUMINOUS FLUX 11068 / 3423 16136 / 4602
lights on. Lamps’ high beam function turns deactivate. The Lazer Lamps’ and isolate zones of lighting to TOTAL DRIVER 'FOV' FLUX † 7294 / 2256 8657 / 2469 INCLUDED IN THE BOX...
on, for a safer, more enjoyable product retains additional lighting avoid dazzling, before reactivating
NO. HIGH DENSITY LEDS 26 36
night drive experience. at the side of the road. once the vehicle passes. TRIPLE-R HIGH PERFORMANCE LED DRIVING LIGHT
POWER CONSUMPTION 95 / 32 WATTS 151 / 35 WATTS
CURRENT DRAW (AT 14.4V) 6.6 / 2.3 AMPS 10.5 / 1.7 AMPS (WITH MALE & FEMALE CONNECTORS)
E-MARK REFERENCE 30 40 ONE-LAMP WIRING KIT
HORIZONTAL BEAM ANGLE 56º 56º CENTRE MOUNTING KIT
INSTALLATION INSTRUCTIONS
*LED manufacturers specification **Lorem ipsum dolor † Lorem ipsum dolor
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light
in a driver's 'field-of-view' defined as an area +/- 45º left/right, and +/- 10º up/down.

45
44 45
