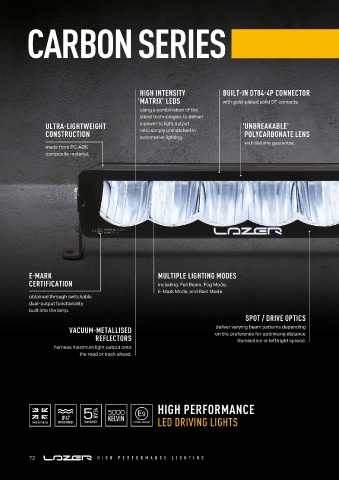

Page 72 - Product Catalogue 2023

CARBON SERIES FIND OUT MORE

HIGH INTENSITY BUILT-IN DT04-4P CONNECTOR CAE OPTIMISED HEATSINK
'MATRIX' LEDS with gold-plated solid DT contacts dissipates heat from the LEDs CARBON SERIES LIGHT OUTPUT

using a combination of the to maintain maximum light output CARBON-6 SPOT
latest technologies to deliver with minimal extra weight
ULTRA-LIGHTWEIGHT a power to light output 'UNBREAKABLE'
CONSTRUCTION ratio simply unmatched in POLYCARBONATE LENS CLIP-ON LENS 200m 300m
automotive lighting.
with lifetime guarantee. FIXTURE 100m
made from PC-ABS
allows for the quick fit
composite material.
and release of amber
and black covers.

INCLUDED IN THE BOX...
CARBON SERIES HIGH PERFORMANCE LED DRIVING LIGHT
(WITH MALE & FEMALE CONNECTORS)
MOUNTING KIT
INSTALLATION INSTRUCTIONS

E-MARK MULTIPLE LIGHTING MODES ALUMINIUM SIDE BRACKETS
CERTIFICATION including: Full Beam, Fog Mode, provide a versatile ultra-lightweight
mounting option.
E-Mark Mode, and Rain Mode.
obtained through switchable
dual-output functionality
built into the lamp.
SPOT / DRIVE OPTICS CARBON-6 DRIVE BEAM PATTERN CARBON-6 SPOT BEAM PATTERN
VACUUM-METALLISED deliver varying beam patterns depending HORIZONTAL SPREAD 60º VERTICAL SPREAD 15º HORIZONTAL SPREAD 32º VERTICAL SPREAD 12º
REFLECTORS on the preference for optimising distance
illumination or left/right spread.
harness maximum light output onto
the road or track ahead. 10º 10º

0º 0º

-10º -10º
HIGH PERFORMANCE -30º -20º -10º -0º 10º 20º 30º -30º -20º -10º -0º 10º 20º 30º

LED DRIVING LIGHTS

72 73
